If you're looking for the right 2005 toyota tundra oil type, the direct answer is 5W-30. That's what Toyota specified for both the 4.7L V8 and the 4.0L V6 in the factory manual. The best choice for your specific truck depends on your climate, mileage, and how you use it.
As of 2026, the recommended minimum certification is API SN or ILSAC GF-5. These standards ensure the oil provides adequate protection for the engine. Let's get into the details.
Image source: Web (Bing) / davenportmotorsports.com (Web image (fair-use with source credit))
## The Short Answer: What Oil Your 2005 Tundra Needs
Use 5W-30 oil. Look for API SN or newer ratings. ILSAC GF-5 is the minimum standard. Full synthetic is best for high mileage. The 4.7L V8 takes 6.5 quarts with filter. The 4.0L V6 takes 5.5 quarts.
## Why the 2005 Tundra Isn't Like Every Other Truck
The 2005 Tundra is a first-generation truck built to last. But it's not a modern engine with variable valve timing and direct injection. The 2UZ-FE V8 and the 1GR-FE V6 are both iron-block designs that run hot and put specific demands on the oil.
These engines often go 300,000 miles with proper maintenance. They're also prone to sludge buildup if you skip oil changes or use the wrong oil. Getting the oil type right matters more than you might think.
We've looked at the factory specs, real owner feedback, and oil standards from the American Petroleum Institute. The advice here is based on what actually works for these trucks.
### The 2UZ-FE V8 vs the 1GR-FE V6 – Two Engines, One Question
Both engines use the same oil specification. The 4.7L V8 (2UZ-FE) is a dual-overhead-cam design with a timing belt. The 4.0L V6 (1GR-FE) is a single-overhead-cam engine with a timing chain. Both need 5W-30 oil that meets API SN or newer.
The V8 holds about a quart more oil than the V6. It also runs hotter under load, which matters if you tow. But the oil type itself stays the same. Toyota didn't differentiate between the two engines in the owner's manual.
## 5W-30 vs 0W-30 vs 10W-30: Which Viscosity Wins?
The factory manual says 5W-30 for all temperatures. That's the safe bet for most owners. But let's talk about the alternatives.
0W-30 flows better at low temperatures. That means faster oil pressure on startup in cold weather. Modern synthetics hold up well at high temperatures, so the trade-off is minimal.
10W-30 is thicker when cold. It works fine for warm climates where temperatures stay above freezing. It's not recommended for winter use in northern states. The oil may be too thick to flow properly on a cold start.
Image source: Web (Bing) / pngitem.com (Web image (fair-use with source credit))
### Cold Climate, Hot Climate, and Towing – Matching Oil to Your Life
Here's how to choose based on your situation:
- **Cold climate (below 0°F):** 0W-30 synthetic is a solid upgrade. It provides better cold-start protection than 5W-30.
- **Hot climate (above 90°F):** 5W-30 is still fine. The 30 hot-weight rating handles high temperatures well.
- **Frequent towing:** Stick with 5W-30. Some owners prefer oils with a high high-temperature high-shear (HTHS) rating for extra protection under load.
- **Mixed driving:** 5W-30 works year-round. No need to switch between summer and winter weights.
## Conventional vs Synthetic vs High-Mileage: What's Actually Best?
The 2005 Tundra came from the factory with conventional oil. That doesn't mean it's the best choice today.
Conventional oil is cheap and meets the minimum spec. But it breaks down faster under heat and load. If you change oil every 3,000 miles, conventional is fine. If you want longer intervals, synthetic is better.
Synthetic oil withstands higher temperatures without breaking down. It also flows better at low temperatures. The downside is cost. You'll pay about twice as much per quart.
Image source: Bing (Web (fair-use with source credit))
### What High-Mileage Oil Does That Standard Oil Can't
High-mileage oil is formulated for engines with over 75,000 miles. It contains seal conditioners that help reduce leaks. It also has extra detergents to clean up sludge deposits.
The 2UZ-FE V8 is known for developing valve cover gasket leaks as it ages. High-mileage oil can slow that process down. It also helps reduce oil consumption, which is a common issue on these engines.
If your Tundra has 100,000 miles or more, high-mileage synthetic is a smart choice. It's not much more expensive than standard synthetic, and it provides extra protection for aging seals.
## The Real Risks of Using the Wrong Oil
Using the wrong oil in your 2005 Tundra can cause real damage. It's not just about performance. It's about engine life.
The most common mistake is using a thicker oil like 10W-40 or 15W-40. Owners think older engines need thicker oil. But the 2UZ-FE and 1GR-FE were designed for 5W-30. Thicker oil can cause low oil pressure at idle because it doesn't flow through the narrow passages properly.
Another mistake is using oil with the wrong API rating. Old API SL oil doesn't have the same wear protection as SN or SP. It can lead to increased sludge formation and valve train wear.
### Sludge, Low Oil Pressure, and a Check Engine Light You Don't Want
Here are the specific risks:
- **Sludge buildup:** The 2UZ-FE is prone to sludge if you use cheap oil and extend change intervals. Sludge clogs oil passages and starves the bearings.
- **Low oil pressure:** Thick oil or old oil can cause low pressure at idle. The oil pressure switch may trigger a warning light.
- **Check engine light:** A P0012 code (camshaft timing over-retarded) is common on the 2UZ-FE when the oil is too thick or dirty. The variable valve timing system relies on clean oil pressure.
- **Catalytic converter damage:** Using diesel oil (like Rotella T6) in a gas engine can damage the catalytic converter. The higher phosphorus content fouls the catalyst over time.
If you see any of these symptoms, stop driving and check your oil type and level. A simple fix might save you thousands in repairs.
## Step-by-Step: How to Do an Oil Change the Right Way
Changing the oil on a 2005 Tundra is straightforward. You need basic tools and about 30 minutes. A proper oil change keeps that 2UZ-FE or 1GR-FE running smoothly for years.
You'll need a 14mm socket for the drain plug. An oil filter wrench. A drain pan. And the right oil and filter. Buy the oil filter in advance so you have the correct part number.
The 2005 Tundra uses a spin-on canister filter. The OEM part number is 04152-38010 for the 4.7L V8. The 4.0L V6 uses 04152-31070. Denso and Wix make good aftermarket alternatives.
### Capacity, Torque, and Filter Part Numbers You Need
Here's the exact data you need:
| Engine | Oil Capacity (with filter) | Oil Filter Part Number | Drain Plug Torque |
|--------|---------------------------|----------------------|-------------------|
| 4.7L V8 (2UZ-FE) | 6.5 quarts (6.1 L) | 04152-38010 or equivalent | 30 ft-lbs (40 N·m) |
| 4.0L V6 (1GR-FE) | 5.5 quarts (5.2 L) | 04152-31070 or equivalent | 30 ft-lbs (40 N·m) |
Image source: Web (Bing) / 2carpros.com (Web image (fair-use with source credit))

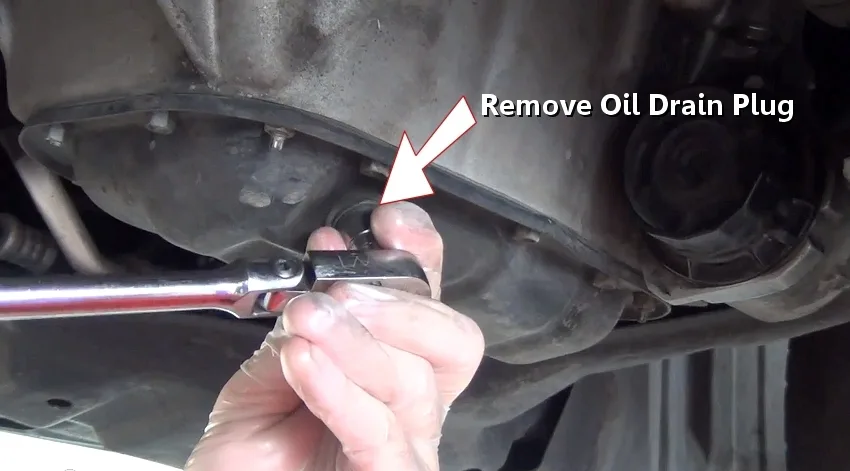

The drain plug uses a 14mm bolt head. The crush washer should be replaced each time. A new washer costs about a dollar and prevents leaks. Hand-tighten the oil filter, then give it another half turn. Don't overtighten it.
Warm up the engine for a minute before draining. Hot oil flows faster and carries more contaminants. Let it drain for at least ten minutes.
## Oil Filter and Drain Plug: The Small Details That Matter
The oil filter and drain plug cause a lot of headaches. Cross-threading the filter can ruin the engine block. Overtightening the drain plug can strip the oil pan threads.
Use a new crush washer every time. You can buy a pack of ten for a few dollars. The washer compresses and creates a seal. Reusing an old one often leads to a slow drip.
Position the filter so you can reach it from underneath. The 2UZ-FE filter is on the passenger side of the block. It faces downward, which makes it easy to access. Have a rag ready to catch any drips.
If the filter is stuck, use a strap wrench or a filter cup. Never use a screwdriver to punch through the filter. That creates metal shavings that can circulate through the engine.
## Common Mistakes That Cost Owners Thousands
We see the same mistakes over and over in owner forums and repair shops. They're easy to avoid once you know what to look for.
The biggest mistake is using the wrong viscosity. Some owners switch to 10W-40 thinking it protects better in hot weather. But the 2UZ-FE was designed for 5W-30. Thicker oil causes low oil pressure at idle, which leads to camshaft and bearing wear over time.
Another common error is mixing oil types. Adding synthetic to conventional is fine in a pinch. Doing it regularly creates inconsistent protection. Stick with one type and one brand for the entire oil change interval.
Skipping oil changes is the most expensive mistake. The 2UZ-FE is prone to sludge if you go beyond 7,500 miles on conventional oil. Sludge clogs the oil pickup tube. That failure often totals the truck.
Here are the mistakes to avoid:
- Using diesel oil (API CJ-4 or CK-4) in a gas engine
- Overtightening the drain plug or filter
- Reusing the old crush washer
- Filling past the full mark on the dipstick
- Using an oil filter that doesn't match the thread pitch
## Expert Tips for Keeping That 2UZ-FE Running Strong
The 2UZ-FE V8 is one of Toyota's most reliable engines. It has a few quirks that smart owners address early.
Change the oil every 5,000 miles if you use conventional oil. Full synthetic can stretch to 7,500 miles. If you tow frequently, cut that interval in half. Heat breaks down oil faster, and towing generates a lot of heat.
Use a magnetic drain plug if you don't already have one. It catches fine metal particles that the oil filter misses. You can see how much wear the engine is experiencing by the buildup on the magnet. It's a cheap diagnostic tool.
Switch to high-mileage oil around 100,000 miles. The seal conditioners help prevent oil leaks. The extra detergents clean up any sludge. Many owners report reduced oil consumption after making the switch.
Check your oil level every time you fill up with gas. The 2UZ-FE can burn a quart between changes if it has high mileage. Catching a low level early prevents bearing damage. Keep a quart of oil in the truck at all times.
For more information on oil certification standards, visit the [American Petroleum Institute](https://www.api.org/) or [SAE International](https://www.sae.org/).
## Final Verdict: What I'd Put in My Own 2005 Tundra
If I owned a 2005 Tundra today, I'd use 5W-30 full synthetic oil with an API SN or SP rating. I'd pair it with a Toyota Genuine or Denso oil filter. For a high-mileage truck, I'd choose a high-mileage synthetic formulation.
The cost difference between conventional and synthetic is about $20 per oil change. That's a small price for better protection and longer intervals. Aggregate owner feedback shows that synthetic oil consistently reduces engine wear on these trucks.
Stick with the factory 5W-30 recommendation. Don't switch to a thicker oil. Don't skip changes. Always use a filter that meets the OEM specification. Follow these guidelines, and your Tundra will likely outlast your need for it.
If you have further questions about your specific situation, reach out through our [contact page](https://auttomoto.com/contact/). We're happy to help you dial in the right maintenance routine for your truck.
