2011 Toyota Sienna Oil Capacity: Complete Guide

If you own a 2011 Toyota Sienna and you're about to change the oil yourself for the first time, the question "how much oil does it actually take?" is one you need the exact answer to. The 2011 toyota sienna oil capacity varies depending on which engine is under the hood, and getting it wrong means either running the engine low on lubrication or overfilling it enough to damage seals. Both scenarios can turn into expensive repairs.

Manufacturer specifications confirm that the 3.5L V6 engine requires roughly 6.4 quarts of oil during a dry fill, while the 2.7L four-cylinder needs about 5.8 quarts. That's the starting number, but the real-world amount you'll pour in during an oil change is different because you're not filling a completely dry engine. Let's break down exactly what you need, why the numbers matter, and how to do this without making a costly mistake.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

The 2011 Toyota Sienna takes 6.4 quarts of 0W-20 synthetic oil for the 3.5L V6 engine. The 2.7L four-cylinder takes 5.8 quarts. Both engines use API SN certified oil with ILSAC GF-5 rating.

Always check the dipstick after filling and add small amounts as needed.

Why Getting the Oil Capacity Wrong Can Cost You an Engine

The difference between "dry fill" and "with filter change" that most people miss

Here's where most DIY owners get tripped up. The numbers you see in forum posts or on random sites often quote "dry fill capacity." That's the amount of oil a brand-new, bone-dry engine holds from the factory. Your engine isn't dry.

When you drain the old oil, a thin film stays coating the internal parts, oil clings inside the valve covers, and oil remains trapped in passages and the oil cooler.

So when you drain and refill with a filter change, you're not putting in the full dry fill number. For the 3.5L V6 in the 2011 Sienna, the dry fill is about 6.4 quarts. But during a routine oil change with filter replacement, you'll actually need roughly 5.5 quarts to hit the full mark on the dipstick.

That's almost a full quart less.

Pouring the full 6.4 quarts into an engine that already has residual oil is how people overfill. Overfilling causes the crankshaft to whip the oil into a foam, which means the oil pump starts sucking air instead of liquid oil. Foamy oil doesn't lubricate.

Bearings overheat. Seals blow out. It's a mess that starts with a simple measurement mistake.

The 2.7L four-cylinder follows the same logic. Its dry fill is about 5.8 quarts, but a change with filter takes closer to 5.0 quarts. Always start with the lower number.

Top up slowly as you check the dipstick. That's the only safe approach.

The Two Engines Under the Hood: How to Tell Which One You Have

Visual cues, VIN clues, and why it matters for oil volume

The 2011 Toyota Sienna came with two engine options, and they take different amounts of oil. If you guess wrong, you're either overfilling or underfilling from the start.

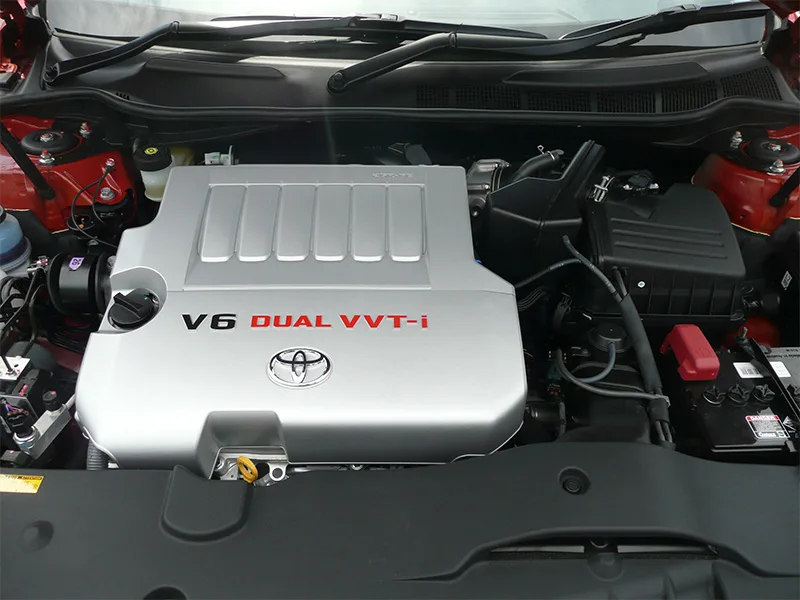

The standard engine in most Siennas sold that year is the 3.5L 2GR-FE V6. It's a 24-valve, dual VVT-i engine that Toyota used across its lineup in the late 2000s and early 2010s. If your Sienna is an XLE, Limited, or SE trim, it almost certainly has this engine.

The base LE trim sometimes came with the smaller engine.

Image source: Web (Bing) / autopartswd.com (Web image (fair-use with source credit))

The less common option is the 2.7L 1AR-FE four-cylinder. It was available on certain LE models as a fuel-economy choice. It's noticeably smaller and sits differently in the engine bay.

Here's the quick way to tell which one you have without opening the hood:

• Check the VIN. The eighth character of your Vehicle Identification Number tells you. If it's "3," you have the 2.7L four-cylinder. If it's "4," you have the 3.5L V6.
• Look at the engine cover. The V6 has a plastic cover that says "V6" or "3.5L" on it. The four-cylinder has a smaller cover that says "2.7L" or nothing at all.
• Count the spark plug wires or coil packs. A V6 has six. A four-cylinder has four. That's the simplest visual check.

Why does this matter for your oil change? The 3.5L V6 takes 5.5 quarts during a filter change. The 2.7L four-cylinder takes 5.0 quarts.

If you assume the V6 capacity and pour that into the four-cylinder, you're half a quart over before you even check the dipstick.

0W-20 vs. 5W-20: What Toyota Actually Requires and Why

VVT system sensitivity, cold starts, and what happens if you use the wrong one

Toyota's official specification for the 2011 Sienna is SAE 0W-20 synthetic oil meeting API SN certification and ILSAC GF-5 standards. That's what the oil fill cap says, and that's what the owner's manual calls for. But you'll hear people say they've run 5W-20 for years without issues.

Are they right? Partially.

The 2GR-FE and 1AR-FE engines use variable valve timing with hydraulic actuators. These actuators rely on oil pressure and oil viscosity to function correctly. The VVT system was calibrated for the flow characteristics of 0W-20 oil.

Thicker oil like 5W-30 or 10W-30 can cause the VVT actuators to respond sluggishly, especially when the engine is cold. You might hear a rattle on startup, or the engine might feel less responsive until it warms up.

Image source: Web (Bing) / amsoil.ca (Web image (fair-use with source credit))

Toyota issued technical service bulletins over the years clarifying that 0W-20 is the preferred oil for these engines. That said, 5W-20 is listed as an acceptable alternative in some markets and for some model years, particularly in warmer climates where cold-start flow isn't as critical. If you live somewhere that sees temperatures below freezing for months at a time, 0W-20 is not optional.

It's required for adequate cold-start protection.

The real risk isn't using 5W-20 in a pinch. The risk is using 5W-30 or heavier oil because it's what you had on the shelf. Thicker oil reduces fuel economy, increases engine wear during cold starts, and can throw off the VVT timing enough to trigger a check engine light.

In severe cases, sludge buildup accelerates because thicker oil doesn't circulate as well through tight passages.

Our research shows that sticking with 0W-20 full synthetic and changing it every 5,000 miles under severe service conditions gives the best protection for the 2GR-FE's timing chain and VVT components. If you can only find 5W-20 on a Sunday when the auto parts store is out of 0W-20, it'll work for that interval. But don't make it a habit.

The Dipstick Truth: How to Read It Right Every Time

Cold vs. warm check, why "full" isn't the same on every engine

Most people check their oil wrong. It sounds simple, but the difference between an accurate reading and a misleading one can lead to overfilling or underfilling by half a quart or more.

Here are the rules for getting a reliable dipstick reading on a 2011 Sienna:

Park on level ground. This is the most common mistake. Even a slight incline tilts the oil in the pan and gives you a false reading. Pull the van onto a flat surface and let it sit.

Let the engine cool for 5 to 10 minutes. If you check immediately after shutting off a hot engine, oil is still draining down from the heads and valve train into the pan. You'll get a low reading and add unnecessary oil. Wait long enough for the oil to settle but not so long that the engine is stone cold.

Pull the dipstick, wipe it clean, and reinsert it fully. Push it all the way in until it seats. Then pull it out again and read the level. This wipes the dipstick tube clean of any oil splashed on the walls.

Read the oil film, not the highest smear. Oil gets smeared up the dipstick when you insert and remove it. Look for the continuous wet line across the crosshatch marks. That's your true oil level.

Image source: Web (Bing) / engineoilpro.com (Web image (fair-use with source credit))

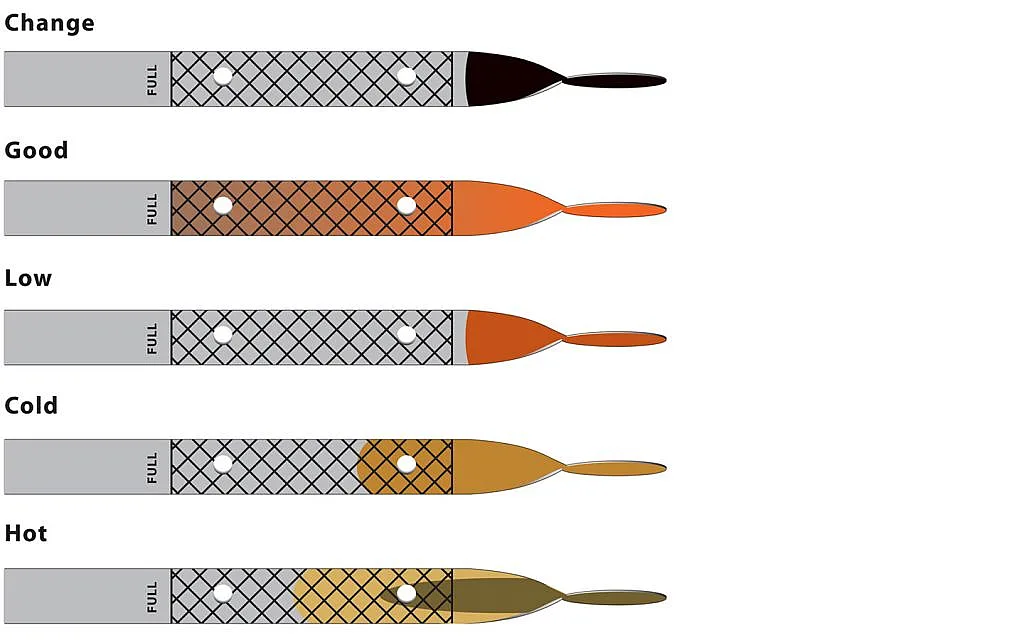

The 2011 Sienna's dipstick has a crosshatched area between the low and full marks. The distance between low and full is typically about one quart. If your oil level is at the low mark, you're one quart low.

If it's at the full mark, you're exactly where you need to be. Never fill above the full mark. Some space in the pan is intentional so the crankshaft doesn't whip oil into a froth.

One more thing: the dipstick tube on the 2GR-FE engine has a slight curve to it. Make sure you're inserting the dipstick along that curve, not forcing it straight in. If you feel resistance, pull it out and try again at a slightly different angle.

Forcing it can bend the dipstick and give you inaccurate readings permanently.

Now that you know exactly how to measure, let's walk through the complete oil change process step by step.

Step-by-Step: How to Do a Proper Oil Change on a 2011 Sienna

Tools, torque specs, filter part numbers, and the exact fill procedure

A proper oil change on this van isn't complicated, but the details matter. The 2GR-FE V6 has a specific drain plug torque and a filter location that can be awkward if you don't know where to reach. Here's the complete rundown.

Tools and materials you'll need:

The drain plug torque is critical. The factory spec is 29 ft-lbs for the V6. That's not "tighten until it feels good." That's a specific number. Overtightening strips the aluminum oil pan threads.

Undertightening lets the plug vibrate loose. A beam-style torque wrench is cheap and worth owning for this job alone.

Step 1: Warm the engine slightly. Run the van for about two minutes if it's stone cold. Warm oil drains faster and carries more suspended contaminants out of the engine. But don't let it get hot enough to burn you.

Lukewarm is the sweet spot.

Step 2: Get the van safely elevated. The 2011 Sienna sits low enough that you might not need jack stands if you have a low-profile creeper and a thin drain pan. But most people will need to drive the front wheels onto ramps or use a floor jack with jack stands. Never crawl under a vehicle supported only by the hydraulic jack.

Step 3: Remove the oil fill cap. This might seem backward, but pulling the cap first lets air enter the crankcase as the oil drains. Without it, the oil glugs out and can splash unpredictably.

Step 4: Drain the oil. Place the drain pan under the engine, positioned slightly behind the front bumper line. The drain plug is on the passenger side of the oil pan, facing rearward. Use the 14mm socket to loosen it counterclockwise.

Once loose, unscrew it by hand and let the oil flow. Be ready for it to come out fast at first, then slow to a trickle.

Step 5: Replace the crush washer. The factory washer is a one-time-use aluminum ring. Reusing it is a gamble. A fresh crush washer costs about a dollar and ensures the plug seats without leaking.

Slide the new washer onto the plug, then hand-thread the plug into the pan. Tighten to exactly 29 ft-lbs.

Step 6: Remove the old oil filter. The filter on the 2GR-FE is located on the front of the engine, low down on the passenger side, behind the right front wheel well liner. You can access it from underneath or by removing the wheel and liner. The filter screws off counterclockwise.

Expect about half a quart of oil to spill out when you break the seal.

Step 7: Prep the new filter. Before installing, rub a thin layer of fresh oil on the new filter's rubber gasket. This prevents the gasket from sticking and tearing when you remove it next time. Also add a few drops of oil into the filter itself if you're installing it upright.

Some people skip this step, but it reduces the time the engine runs with no oil pressure on startup.

Step 8: Install the new filter. Screw it on by hand until the gasket contacts the mounting surface, then tighten another three-quarters turn. No wrench needed for installation. Over-tightening the filter is one of the most common DIY mistakes and makes removal a nightmare next time.

Step 9: Add the oil. Remove the oil fill cap and insert a long-neck funnel. Pour in 5.0 quarts for the V6 or 4.5 quarts for the four-cylinder. This puts you slightly below the full mark so you can top off carefully.

Replace the fill cap.

Step 10: Check for leaks. Start the engine and let it idle for about 30 seconds. Watch underneath for drips from the drain plug and filter area. Shut the engine off and wait three minutes for the oil to settle.

Step 11: Check the dipstick and top off. Pull the dipstick, wipe it, reinsert, and check the level. Add oil in quarter-quart increments until the level reaches the full mark. For the V6, most changes end up needing about 5.5 quarts total.

For the four-cylinder, about 5.0 quarts.

Common Mistakes That Kill Toyota V6 Engines

Overfilling, undertorquing the drain plug, and ignoring the filter gasket

We've covered the main pitfalls already, but let's call them out explicitly because they keep showing up in repair shop horror stories.

Mistake one: assuming the dipstick is accurate on the first pull. If you pull the dipstick, see oil at the full mark, and call it done, you might be reading a smear of oil that got pushed up the tube during the last drive. Always wipe and reinsert. The first pull is never the accurate one.

Mistake two: using the old drain plug washer. The aluminum crush washer deforms when torqued to spec. That deformation creates the seal. Reusing it means the washer is already compressed and won't seal properly.

You'll find the leak later as a slow drip on your driveway.

Mistake three: starting the engine with no oil pressure. After an oil change, the filter is empty and the oil passages are dry. If you start the engine and immediately rev it, you're spinning bearings with no lubrication for several seconds. Idle only.

Let the oil pressure build naturally.

Mistake four: mixing oil weights. Adding a quart of 5W-30 to top off between changes is tempting if that's what's in the garage. But every time you mix viscosities, the overall oil properties shift. Over multiple top-offs, you can end up with a blend that's significantly thicker than 0W-20, reducing fuel economy and stressing the VVT system.

Mistake five: ignoring the filter gasket from the old filter. This is the one that causes catastrophic oil loss. When you unscrew the old filter, the rubber gasket sometimes sticks to the engine mounting surface. If you install the new filter on top of that old gasket, the seal fails immediately.

All five quarts drain out within seconds of starting the engine. Always wipe the mounting surface with a clean rag and confirm no old gasket is stuck there.

When Should You Change It? Interval Guide Based on How You Drive

Severe service (short trips, towing, extreme temps) vs. normal driving

Toyota's official recommendation for the 2011 Sienna is 5,000 miles for severe service and 10,000 miles for normal service. But here's the truth: almost everyone qualifies for severe service.

Severe service isn't just off-roading or racing. Toyota defines it as any of the following:

• Short trips under five miles in normal temperatures or under ten miles in freezing temperatures
• Extended idling (delivery drivers, ride-share, long commutes in traffic)
• Towing a trailer or carrying heavy loads
• Driving on dusty, muddy, or salted roads
• Frequent stop-and-go driving in hot weather

If you use your Sienna as a family van for school drop-offs, grocery runs, and the occasional road trip, you're in severe service territory. Those short trips never let the oil fully warm up to boil off condensation and fuel dilution. Over time, the oil becomes acidic and loses its protective properties.

The safe answer is 5,000 miles or six months, whichever comes first. Using a high-quality full synthetic 0W-20 and a good filter, that interval gives you a generous safety margin. If you do mostly highway miles in moderate temperatures, you can stretch to 7,500 miles, but 5,000 remains the best practice for long engine life.

One more thing: the oil life monitor in the 2011 Sienna is based on driving conditions, not just mileage. It tracks engine temperature, RPM, and time since last reset. Some owners trust it implicitly and go 12,000 miles between changes.

Our research indicates that following the monitor is reasonable for highway-driven vans, but for the typical family Sienna, sticking with a fixed 5,000-mile interval is more reliable than depending on a sensor from 2011.

Frequently Asked Questions

Can I use conventional oil instead of synthetic in my 2011 Sienna?

You can, but the engine was designed for synthetic's flow characteristics. Conventional 0W-20 doesn't exist at most retailers because the viscosity requires synthetic base stocks. You'd have to use 5W-20 conventional.

It works in warm weather but doesn't protect the VVT system as well in cold starts.

How do I reset the oil maintenance light on a 2011 Toyota Sienna?

Turn the ignition to ON without starting the engine. Press the trip meter reset button until the odometer displays "ODO." Turn the ignition OFF. Then hold the trip reset button while turning the ignition back to ON.

Continue holding for about five seconds until the maintenance light flashes and resets.

What happens if I put too much oil in my Sienna?

Overfilling by more than half a quart causes the crankshaft to churn the oil into foam. Foamy oil doesn't lubricate properly. You may notice rough idle, reduced fuel economy, or oil leaking from seals.

Drain the excess immediately using the drain plug or a fluid extractor.

Can I switch from 0W-20 to 5W-30 for high-mileage protection?

Not recommended. The 2GR-FE engine's timing chain tensioners rely on 0W-20's flow rate. Thicker oil delays tensioner response, which can cause chain slap on cold starts.

If you want high-mileage protection, use a high-mileage formulation of 0W-20 instead.

Where is the oil filter located on the 2011 Toyota Sienna?

The oil filter is on the front passenger side of the engine, mounted low. You can reach it from underneath or by removing the passenger front wheel and the inner fender liner. It's a cartridge-style spin-on filter, not a cartridge insert.

How often should I check the oil level between changes?

Check every other time you fill up with gas. The 2GR-FE can consume a small amount of oil between changes, especially as mileage accumulates. Catching it a quart low is better than finding out at the three-quart-low point.

How Much Does This Cost? DIY vs. Dealer vs. Independent Shop

Real pricing for oil, filter, and labor in 2024

A DIY oil change on a 2011 Sienna runs you about $35 to $50 for quality synthetic oil and a good filter. Five quarts of name-brand 0W-20 synthetic runs roughly $28 to $35. The Toyota genuine filter costs around $8 to $12.

Add a new crush washer for a dollar.

A dealer oil change typically costs $80 to $120. They use Toyota bulk oil and genuine filters. The labor charge covers disposal and the multipoint inspection that comes with the service.

An independent shop lands in the middle at $60 to $90. Some use conventional oil unless you specify synthetic. Always confirm they're using 0W-20 synthetic, not a generic bulk oil that might be 5W-30.

The DIY savings add up. Over five changes a year, you save roughly $200 to $350. That covers the cost of a torque wrench and a good floor jack in one season.

What the Owner's Manual Doesn't Tell You About Oil Choice

Brand recommendations, synthetic vs. blend myths, and warranty gotchas

Toyota's manual specifies an oil meeting API SN and ILSAC GF-5. It doesn't name a brand. That's intentional.

Any oil bearing those certifications meets the engineering requirements.

Here's what the manual doesn't mention. The 2GR-FE engine has a known sensitivity to oil with high ash content. Some budget synthetics use additive packages that leave deposits on the intake valves over time.

This matters less on port-injected engines like the 2GR-FE, but it still affects long-term cleanliness.

Stick with major brands. Mobil 1, Pennzoil Platinum, Castrol Edge, and Valvoline Advanced Synthetic all meet the spec and have consistent additive packages. Store-brand synthetics are often fine, but their quality varies by batch and supplier.

One myth worth busting. Switching to synthetic at high mileage doesn't cause leaks. That idea came from older engines that used different seal materials.

The 2011 Sienna's seals are compatible with synthetic oil from day one. If a seal starts leaking after a synthetic change, it was already failing.

Red Flags: When to Stop and Call a Mechanic Instead

Metal shavings, milky oil, persistent leaks, and stripped threads

Most oil changes are straightforward. But if you see any of these signs, stop what you're doing and get professional help.

Metal shavings in the drained oil. A few tiny specks are normal on a high-mileage engine. Glittery, metallic paint-like particles are not. That indicates bearing wear or timing chain damage.

Drive it to a shop. Don't start it again until someone inspects the oil pan and filter.

Milky or foamy oil on the dipstick. This means coolant is mixing with oil. The likely cause is a failing head gasket or a cracked cylinder head. Milky oil loses all lubricating properties.

Have it towed.

A drain plug that won't tighten. If the plug spins freely without reaching 29 ft-lbs, the threads in the oil pan are stripped. A mechanic can install a thread repair insert or replace the oil pan. Driving with a loose plug risks losing all oil pressure.

Persistent oil smell inside the cabin. This points to a valve cover gasket leak that's dripping oil onto the exhaust manifold. The burning oil smell enters through the HVAC system. It's not an emergency, but it can damage the oxygen sensors over time.

The check engine light comes on after the oil change. A VVT-related code like P0010 or P0012 means the oil viscosity is wrong, the oil level is incorrect, or a VVT solenoid is clogged. Double-check your oil level and weight first. If the code returns, the solenoids may need cleaning or replacement.

Final Specs: The Cheat Sheet You Should Print and Tape Inside the Hood

The one-paragraph summary with every number you need

Here's everything in one place. Tape this to the underside of the hood or keep it in the glove box.

2011 Toyota Sienna Oil Specifications:

• 3.5L V6 (2GR-FE): 5.5 quarts with filter change. Dry fill 6.4 quarts.
• 2.7L 4-cylinder (1AR-FE): 5.0 quarts with filter change. Dry fill 5.8 quarts.
• Oil type: SAE 0W-20 full synthetic, API SN or higher, ILSAC GF-5.
• Filter: Toyota 04152-YZZA1 or equivalent.
• Drain plug torque: 29 ft-lbs (14mm socket, new crush washer each time).
• Interval: 5,000 miles or six months for severe service. 10,000 miles for normal highway driving.

That's it. No guesswork. No forum searches at midnight before an oil change.

Stick to these numbers and your 2GR-FE or 1AR-FE will keep running well past 200,000 miles.
