The exact answer to this question isn't just a brand recommendation. It's a specific viscosity grade, a certification standard, and a capacity figure. Getting it right matters because the 2020 Corolla LE uses a modern direct-injection engine designed around ultra-thin oil for fuel efficiency.
Here is the short version you need. The 2020 Toyota Corolla LE requires SAE 0W-16 full synthetic oil that meets API SP or ILSAC GF-6 standards. The engine takes 4.4 quarts with a filter change.
Using anything else is a compromise.
Quick Answer
The 2020 Toyota Corolla LE needs SAE 0W-16 full synthetic oil. It must meet API SP or ILSAC GF-6 standards. Capacity is 4.4 quarts with filter change.
Toyota Genuine Motor Oil is the reference brand. 0W-20 is an approved emergency substitute.
Why Using the Wrong Oil Isn't Optional: Risks to Warranty and Engine Life
The M20A-FKS engine in the 2020 Corolla LE is a modern design. It uses tight bearing clearances and a variable-pressure oil pump to reduce parasitic drag. The entire lubrication system was engineered around 0W-16.
That oil is thin enough to flow instantly at cold startup, yet it maintains film strength at operating temperature.
Putting thicker oil in, like 5W-30, does two bad things. First, it struggles to reach every bearing surface on a cold start, especially in winter. Second, the oil pump works harder to push thicker oil, which hurts fuel economy and can trigger low oil pressure warnings in extreme cases.
The warranty risk is real. Toyota's owner's manual explicitly calls for 0W-16 with API SP or ILSAC GF-6 certification. If a dealer finds heavier oil in the crankcase during a warranty claim and there is engine damage, they can deny coverage.
It is written into the fine print.

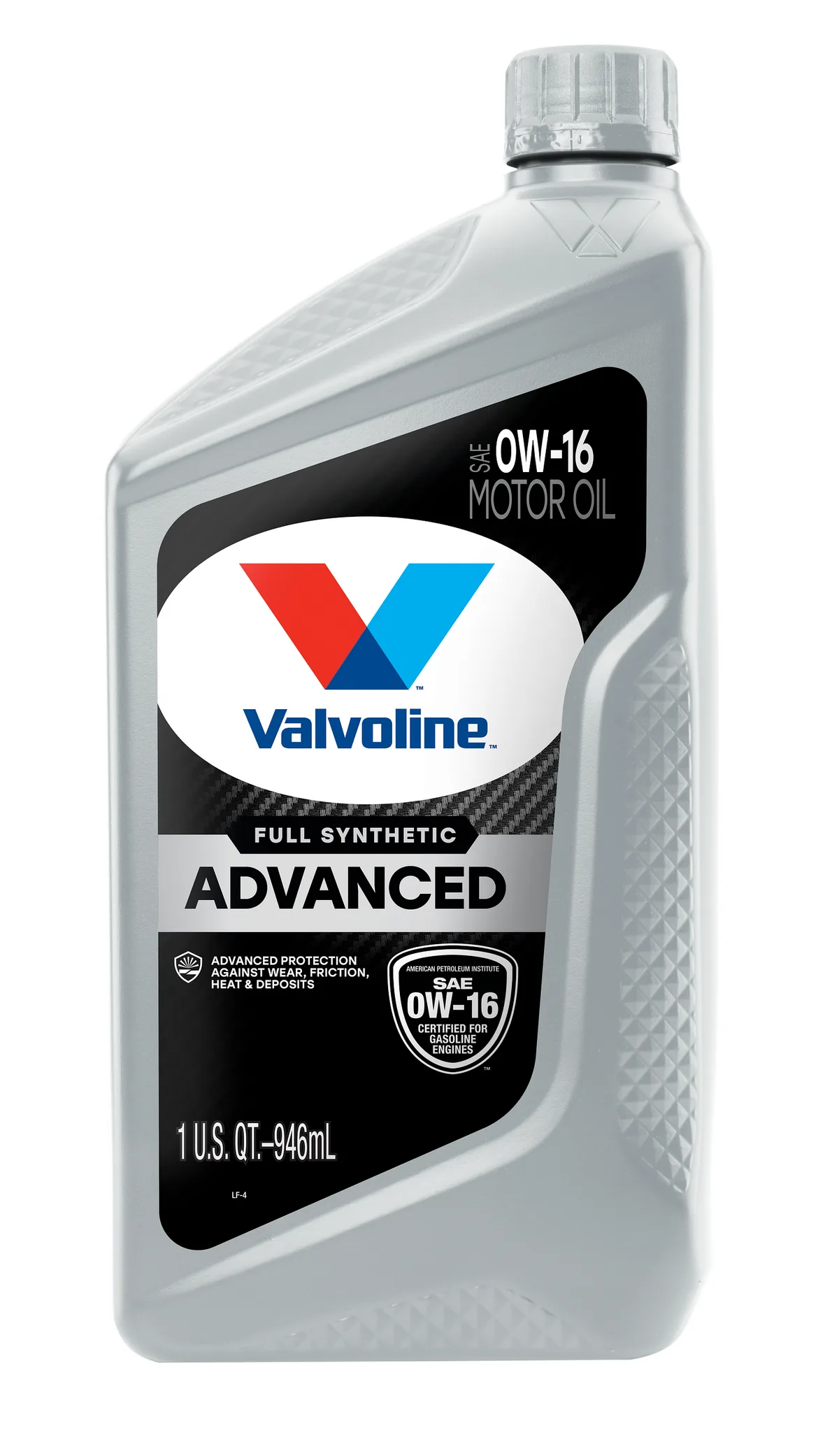

Image source: Web (Bing) / shop.valvolineglobal.com (Web image (fair-use with source credit))
The Core Specs: Viscosity, API SP Certification, and Oil Capacity
Viscosity: SAE 0W-16. The 0W rating means the oil stays fluid at -40°C. That is critical for winter starts in cold climates. The 16 rating is the viscosity at 100°C operating temperature.
Older oils like 5W-30 have a 30 rating, which is thicker. 0W-16 is about 30% thinner at operating temperature than 0W-20. That reduction in internal friction gives the Corolla LE its rated 32 mpg city and 41 mpg highway.
The oil fill cap on the engine tells you this directly. Pop the hood, and it is printed right there.
Image source: Web (Bing) / toyotanation.com (Web image (fair-use with source credit))
Certification: API SP and ILSAC GF-6. API SP is the most current American Petroleum Institute standard, introduced in 2020. It adds protections specifically for direct injection engines, including low-speed pre-ignition prevention and timing chain wear protection. ILSAC GF-6 is the international equivalent.
Both standards are backward compatible with earlier ones, but earlier standards are not forward compatible. If the bottle does not show API SP or ILSAC GF-6 on the label, do not buy it.
Capacity: 4.4 Quarts with Filter. The oil pan holds 4.4 US quarts when you also replace the filter. If you are just topping off, check the dipstick. The difference between low and full is about one quart.
Never overfill. Overfilling causes the crankshaft to whip the oil into foam, which reduces oil pressure and starves bearings.
0W-16 vs. 0W-20 vs. 5W-30: What's Approved, What's a Substitute, What's a Mistake
| Oil Grade | Status for 2020 Corolla LE | Effect |
|---|---|---|
| 0W-16 | Approved (primary spec) | Optimal fuel economy, cold start, and engine protection |
| 0W-20 | Emergency substitute only | Acceptable for one oil change cycle, slightly lower mpg |
| 5W-30 | Not recommended | Thicker cold start, higher oil pump load, mpg penalty |
0W-16 is what the engine was designed for. Use it unless you have no choice.
0W-20 is an approved temporary substitute according to Toyota's official TSB. If you are on a road trip and 0W-16 is nowhere to be found, 0W-20 will not damage the engine for one oil change interval. Switch back at the next change.
Do not make it a habit.
5W-30 is a mistake. It is too thick for the M20A-FKS. Cold starts in freezing weather will have delayed oil delivery to the top end of the engine.
Over time, that causes accelerated camshaft and timing chain wear. Fuel economy drops by roughly 2 to 3 percent as well.
Image source: Web (Bing) / okpetroleummarketplace.com (Web image (fair-use with source credit))
How to Find the Right Oil at the Store: Reading Labels for the M20A-FKS Engine
Walking into an auto parts store can be overwhelming. The shelf has dozens of options. Here is how to narrow it down in under a minute.
Step 1: Confirm the viscosity. Look for the large SAE label on the front. It must say 0W-16. Some bottles also list it on the back or side.
If it does not say 0W-16, put it back.
Step 2: Check the certification starburst. On the back label, find the API Starburst symbol. Inside it, it must say SP or SP/RC. Also look for the ILSAC GF-6 starburst.
If the bottle only shows API SN or older, skip it.
Step 3: Confirm full synthetic. The bottle must say Full Synthetic somewhere prominently. 0W-16 is not available in conventional or synthetic blend formulations for passenger cars.
Step 4: Pick a brand you trust. Toyota Genuine Motor Oil is always a safe bet. Any major brand that meets the specs above works. The key is the certifications, not the logo.
Step-by-Step: Changing Your Oil the Safe Way (DIY Guide)
Changing the oil on a 2020 Corolla LE is straightforward. You need basic tools and about 45 minutes.
Tools and materials you will need:
- 4.4 quarts of 0W-16 full synthetic oil (API SP)
- Oil filter (Toyota part 04152-YZZA1 or equivalent)
- New drain plug washer (Toyota part 90430-12031)
- 14mm socket and ratchet
- Oil filter wrench (64mm, 14-flute)
- Drain pan
- Funnel
- Torque wrench (recommended)
The process in six steps:
Warm the engine. Run it for two to three minutes. Warm oil drains faster and carries more suspended contaminants. Do not let it get hot enough to burn you.
Drain the old oil. Place the drain pan underneath. Remove the fill cap on top of the engine first. This prevents a vacuum lock. Loosen the drain plug with a 14mm socket. Let it drain completely, about five minutes.
Replace the drain plug washer. The old washer is crushed and may leak if reused. Install the new one. Tighten the drain plug to 30 lb-ft. That is snug plus a quarter turn. Do not overtighten. The oil pan is aluminum and strips easily.
Remove and replace the oil filter. The filter is on the front of the engine, accessible from underneath. Use the filter wrench to loosen it. Spin it off by hand. Lightly oil the new filter's rubber gasket with fresh oil. Screw it on hand-tight, then give it another three-quarter turn.
Add the new oil. Insert a funnel into the fill hole. Pour in 4.4 quarts of 0W-16. Replace the fill cap.
Check the level and inspect for leaks. Start the engine and let it idle for one minute. Shut it off and wait three minutes. Pull the dipstick. The level should be between the two dots. Check underneath for any drips from the drain plug or filter.
Image source: Bing (Web (fair-use with source credit))
Common Mistakes That Cost You
Overfilling the crankcase. Adding the full 5-quart jug without measuring is the most common mistake. The M20A-FKS holds 4.4 quarts. Pouring in five quarts puts the oil level above the maximum mark.
Excess oil gets whipped into foam by the crankshaft. Foam does not lubricate bearings properly. Low oil pressure warnings and accelerated wear follow.
Stripping the drain plug. The oil pan is cast aluminum. The threads are softer than the steel drain plug. Overtightening with a long ratchet crushes the threads.
A stripped pan means a replacement costing a few hundred dollars. Always use a torque wrench set to 30 lb-ft.
Using the wrong oil filter. Aftermarket filters that claim to fit sometimes have the wrong bypass valve pressure. That can cause oil starvation at cold startup. Stick with the Toyota OEM filter or a known equivalent from Wix, Bosch, or Mobil 1.
Cost Breakdown: DIY vs. Dealer Oil Change
DIY costs:
| Item | Price |
|---|---|
| 5 quarts 0W-16 full synthetic | $28 to $38 |
| Oil filter | $6 to $12 |
| Drain plug washer | $1 to $3 |
| Total DIY | $35 to $53 |
Dealer or shop costs: $80 to $120. Independent shops charge $60 to $90. That includes disposal, a fluid top-off, and a tire rotation in some cases.
If you DIY, you save $30 to $70 per change. Over three changes a year, that is $90 to $210 in savings. The tools pay for themselves in one or two changes.
One trade-off: the dealer resets the maintenance light and records the service in Toyota's system. That matters for resale value.
Special Scenarios: Cold Climates, Short Trips, and High-Mileage Driving
Cold climates. 0W-16 is already the right choice. The 0W rating handles -40°C starts without thickening. Do not switch to 0W-20 or 5W-30 thinking thicker oil helps in cold weather.
It does the opposite. Stick with 0W-16 and shorten your change interval to 5,000 miles.
Short trips. If you mostly drive under five miles per trip, the oil never reaches full operating temperature. Moisture and fuel accumulate in the crankcase. Change the oil every 5,000 miles or six months, whichever comes first.
High-mileage driving. Past 100,000 miles, standard 0W-16 with API SP is still sufficient. High-mileage 0W-16 formulations are rare. Focus on maintaining the 5,000 to 7,500-mile change interval instead.
When to Call a Mechanic or Visit the Dealership
You need a shop if: you do not have a level surface to work on, the drain plug is already damaged, you see metal flakes in the drained oil, or you cannot reset the maintenance light.
The dealer is worth the extra cost if your Corolla is still under warranty. The 3-year/36,000-mile basic warranty and 5-year/60,000-mile powertrain warranty are active. Keep every receipt if you DIY.
Our stance is that documented DIY with the correct spec is fine. The convenience factor is your call.
Final Verdict
Use SAE 0W-16 full synthetic oil with API SP or ILSAC GF-6 certification. Change it every 5,000 miles for severe service or every 7,500 to 10,000 miles for normal driving. Replace the filter and drain plug washer each time.
That is the complete formula for keeping the M20A-FKS engine running smoothly for 200,000 miles or more.
Skip the experimentation. Thicker oil does not protect better. It robs fuel economy and delays lubrication on cold starts.
Toyota engineered this engine around thin oil for a reason. Trust the spec.
Frequently Asked Questions
Can I use 0W-20 instead of 0W-16 in my 2020 Corolla LE?
Yes, but only as a temporary substitute. Toyota officially approves 0W-20 for one oil change cycle if 0W-16 is unavailable. Switch back at the next change.
Long-term use of 0W-20 reduces fuel economy by roughly one to two percent.
What happens if I put 5W-30 in a 2020 Corolla LE?
Do not do it. 5W-30 is too thick for the M20A-FKS engine. It causes delayed oil delivery on cold starts, increases oil pump load, and hurts fuel economy. Over time, it can accelerate timing chain wear.
How often should I change the oil in a 2020 Corolla LE?
Toyota recommends every 10,000 miles for normal driving conditions. For severe service, which includes short trips, extreme temperatures, or stop-and-go traffic, change it every 5,000 miles. Most owners should follow the 5,000-mile interval for peace of mind.
How much oil does a 2020 Toyota Corolla LE take?
The engine holds 4.4 US quarts with a filter change. If you are only topping off, check the dipstick. The difference between the low and full marks is about one quart.
Never overfill.
Does the 2020 Corolla LE require synthetic oil?
Yes. The engine requires full synthetic 0W-16 oil. Conventional oil in this viscosity does not exist for passenger cars.
Even if it did, conventional oil lacks the thermal stability and low-temperature flow that the M20A-FKS needs.
How do I reset the oil maintenance light on a 2020 Corolla LE?
Turn the ignition to ON without starting the engine. Use the odometer button to cycle to the trip meter screen. Turn the ignition OFF.
Hold the odometer button and turn the ignition back to ON. Keep holding until the maintenance light flashes and resets.
