2003 Toyota Sequoia Oil Capacity: Complete Guide

There’s no warning light that tells you the oil pan is a quart overfilled. No dashboard chime if you use the wrong viscosity. And by the time you hear a rod knock from the 2UZ-FE in your 2003 Toyota Sequoia, the damage is done.

Getting the 2003 Toyota Sequoia oil capacity wrong is one of the easiest ways to shorten the life of one of Toyota’s most durable V8s, and the fix is a simple correct measurement.

The engineering behind the 4.7-liter V8 is robust. According to Toyota’s service documentation, this engine was designed with tight bearing clearances and a specific oil pan depth that demands an exact fill level. As of 2026, many of these SUVs are still on the road with over 200,000 miles precisely because owners followed the spec.

Let’s pull that spec apart so you never have to learn the hard way.

Image source: Bing (Web (fair-use with source credit))

Why Getting the Oil Capacity Wrong Can Cost You an Engine

The 2UZ-FE doesn’t forgive oil mistakes the way some older iron-block engines do. Overfill by a quart and the crankshaft whips the oil into a froth. Air bubbles get sucked into the oil pump, oil pressure drops, and bearings start running dry.

Underfill by a quart and the pickup tube can’t reach the oil during hard cornering or steep inclines. That starves the cam journals and rod bearings.

Both scenarios create metal-on-metal contact that quickly turns into a spun bearing or a seized cam. A replacement 2UZ-FE long block? That runs north of $3,500.

A proper oil change with the correct capacity costs you about 35 dollars and thirty minutes. The math is clear.

The problem is that capacity numbers online often conflict. Some sources say 6.5 quarts, some say 7.0. The real number depends on whether you’re changing the filter and whether you measure from a drained or topped-off engine.

We’re going to settle that right now.

Quick Answer

The 2003 Toyota Sequoia with the 4.7L V8 holds 6.9 US quarts of oil when you replace the filter. Without a filter change, it holds about 6.3 quarts. Use API-certified SL or newer 5W-30 oil.

The engine’s oil pan capacity is 6.3 quarts dry, but the filter holds roughly 0.6 quarts. Always verify with the dipstick after adding 6.5 quarts, then top up.

Image source: Bing (Web (fair-use with source credit))

Engine Specs That Matter – The 4.7L 2UZ-FE and Its Oil Needs

Oil Viscosity: 5W-30 Is the Rule, Not a Suggestion

Toyota factory service bulletins from 2003 specify SAE 5W-30 for the 4.7-liter engine in nearly all climates. The “5W” means it flows like a 5-weight oil in cold starts, which protects the timing chain tensioner and the variable valve timing (if equipped). The “30” means it thickens enough at operating temperature to keep a proper oil film on the rod bearings.

Some owners in hot southern climates try 10W-30, thinking the extra thickness protects better. That’s a mistake. The 2UZ-FE’s oil pump is designed for 5W-30.

Thicker oil reduces flow at idle, especially when the engine is hot. That can cause the variable-valve timing actuator to rattle or fail. Use what the manual says: 5W-30.

API and ILSAC Ratings – Why “SL or Newer” Isn’t Optional

The oil you pour in must meet API SL or ILSAC GF-4 or a newer standard. These ratings guarantee the oil contains the right amount of anti-wear additives (like zinc and phosphorus) and detergents to handle the 2UZ-FE’s valve-train design. Running an oil with a lower API rating (like SJ or older) can accelerate camshaft lobe wear.

Running an oil with a much newer rating (like SN Plus or SP) is fine. Newer ratings are backward-compatible. Just avoid oils labeled “API CI-4” or “API CK-4”, those are diesel engine oils that lack the friction modifiers a gasoline V8 needs.

For a reliable reference, the American Petroleum Institute’s engine oil classification page shows how the ratings stack up. Stick with SL or anything after it.

Step by Step: How to Do the Oil Change Safely and Accurately

Performing an oil change on the 2003 Sequoia isn’t hard, but skipping steps leads to mistakes. Follow this sequence to guarantee you land right on 6.9 quarts.

Image source: Bing (Web (fair-use with source credit))

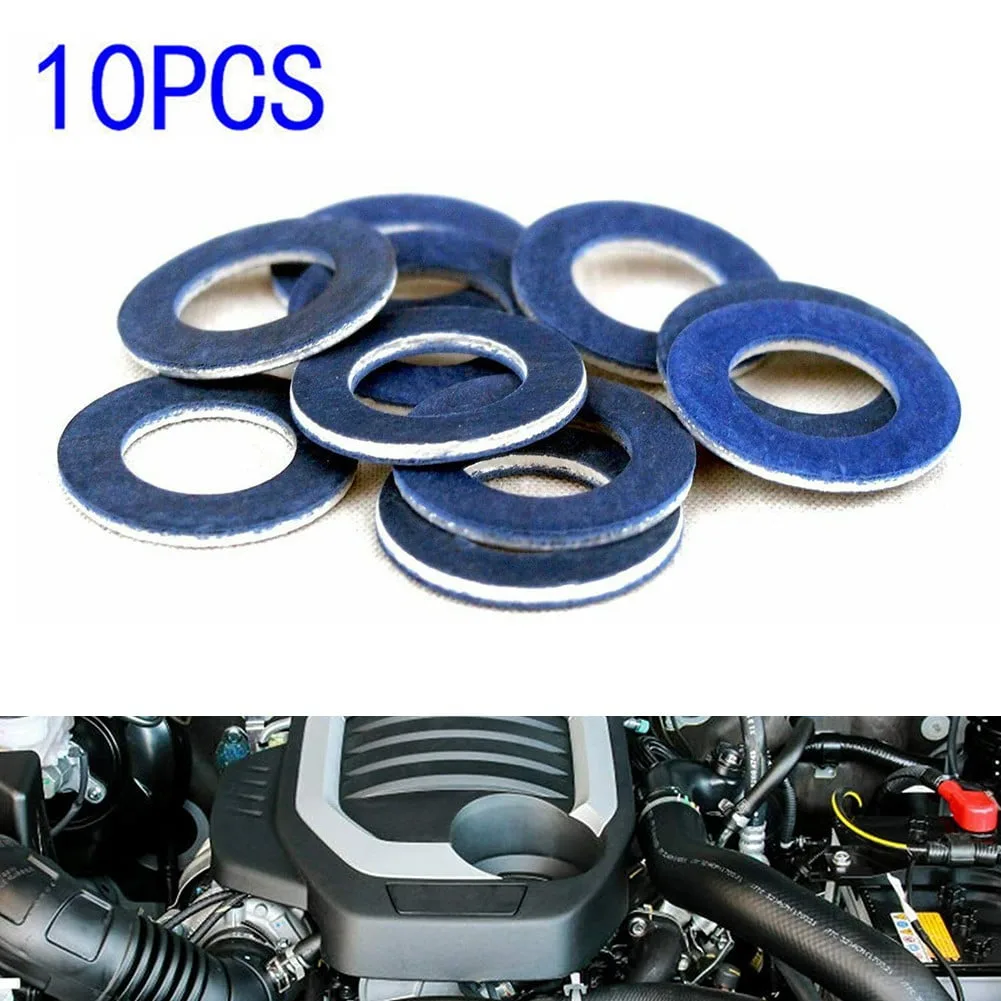

A word on the crush washer: it’s a one‑time‑use part. Reusing a flattened crush washer is the most common cause of a slow drip from the drain plug. A pack of ten costs about five dollars.

Replace it every change.

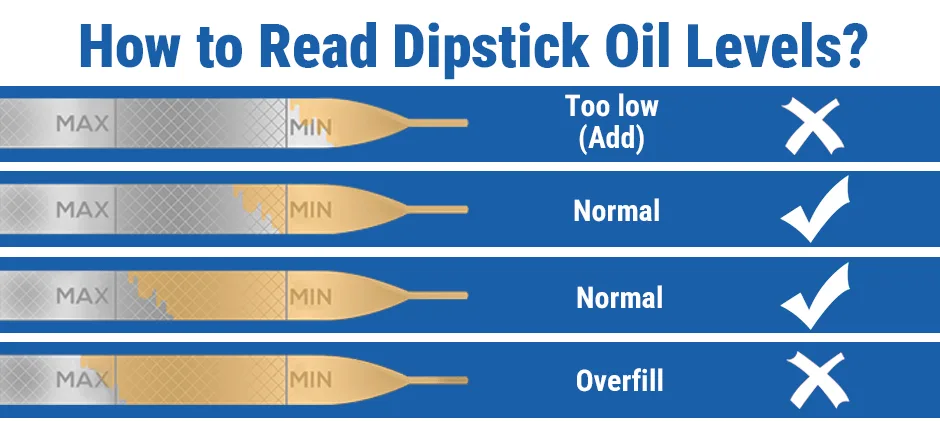

The Dipstick Trap: How to Get a True Reading Every Time

The 2UZ-FE dipstick tube is a little tricky. It curves behind the exhaust manifold, and a drop of oil can cling to the side of the tube, giving you a false high reading. To get an honest measure:

1. Pull the dipstick, wipe it clean, reinsert fully, then pull again. Never read the first pull.
2. Park on level ground. Even a two‑degree tilt changes the reading by half a quart.
3. Wait two minutes after shutdown. The oil needs time to drain back into the pan.
4. Look at the crosshatch area. The “low” mark is the bottom of the crosshatch; the “full” mark is the top. The distance between them is about one quart.

If the oil level is between low and full, the engine is safe. But the 6.9‑quart spec fills the pan to the full mark. If you only added 6.5 quarts and your dipstick shows low, add a quarter‑quart at a time until the top of the wet line reaches the full mark.

Do not overfill.

This is where many DIY owners go wrong: they add the full 6.9 quarts without warming the engine first, then the dipstick shows high because the filter hasn’t filled yet. Always fill to 6.5, run the engine, then check and top off. That single step prevents the froth problem we talked about earlier.

For reference, the same dipstick reading logic applies to other Toyota V8 engines. If you’ve ever serviced a 2018 Toyota 4Runner or a 2016 Toyota Tundra, the procedure is nearly identical. You can find the exact specs for those models in our guide on 2018 4Runner oil type or the 2016 Tundra oil type page.

Now that you know the right capacity and how to measure it, the next step is picking the right filter and deciding between conventional or synthetic oil. We’ll cover that in the sections ahead.

Common Oil Capacity Mistakes That Lead to Engine Damage

You already know the right number: 6.9 quarts with a filter change. But knowing it and getting it right are two different things. Here are the four most common ways people mess it up.

Mistake 1: Dumping the full 6.9 quarts before running the engine. The filter is empty, so the pan can’t hold all that oil yet. You end up overfilled. Always add 6.5 quarts first, run the engine, then top off to the full mark.

Mistake 2: Relying on a dipstick reading from uneven ground. A slight tilt can show a quart low or a quart high. Park on level pavement. If you’re on a sloped driveway, the reading is useless.

Pull the dipstick, wipe it, reinsert, then read.

Mistake 3: Using the old crush washer a second time. That thin aluminum gasket compresses once. Reusing it almost guarantees a slow drip. A new crush washer costs pennies.

Don’t skip it.

Mistake 4: Mixing viscosities. Topping off with 10W-30 because the store was out of 5W-30 is a gamble. The viscosity blend can change the oil’s flow characteristics. Keep a spare quart of the correct 5W-30 in your garage.

If you’re out, wait until you can get the right stuff.

You’ll find the same pitfalls on other Toyota V8 models from the same era. Our guide on the 2009 Tacoma oil type covers similar warnings for that engine family.

Draining vs. Warm-Up – Why That Step Matters More Than You Think

Cold oil is thick. If you drain it when the engine is stone cold, you leave a lot of sludge and old oil clinging to the internals. That means you might only get 5.5 quarts out, not the full 6.3 the pan holds.

Then when you add the new oil, you’re mixing fresh with a quart of old crud.

Hot oil is dangerous. Draining immediately after a long drive can burn you, and the oil is so thin it runs out too fast, leaving contaminants behind.

The sweet spot is a short warm-up. Start the engine, let it idle for about two minutes, then shut it off. That gets the oil warm enough to flow freely, but not hot enough to cause injury or vaporize. Wait another 30 seconds for the oil to settle, then drain.

You want the oil temperature somewhere around 100, 120°F. If you don’t have a thermometer, the oil should feel warm but not scalding on your hand (use a gloved hand). That’s when you get the most complete drain.

If you drive mostly short trips in cold weather, the 2UZ-FE can build up moisture in the crankcase. A proper warm-up before draining helps flush out that condensation. Aggressive skippers who drain cold oil often end up with water droplets visible in the drained oil.

That’s a sign of incomplete removal.

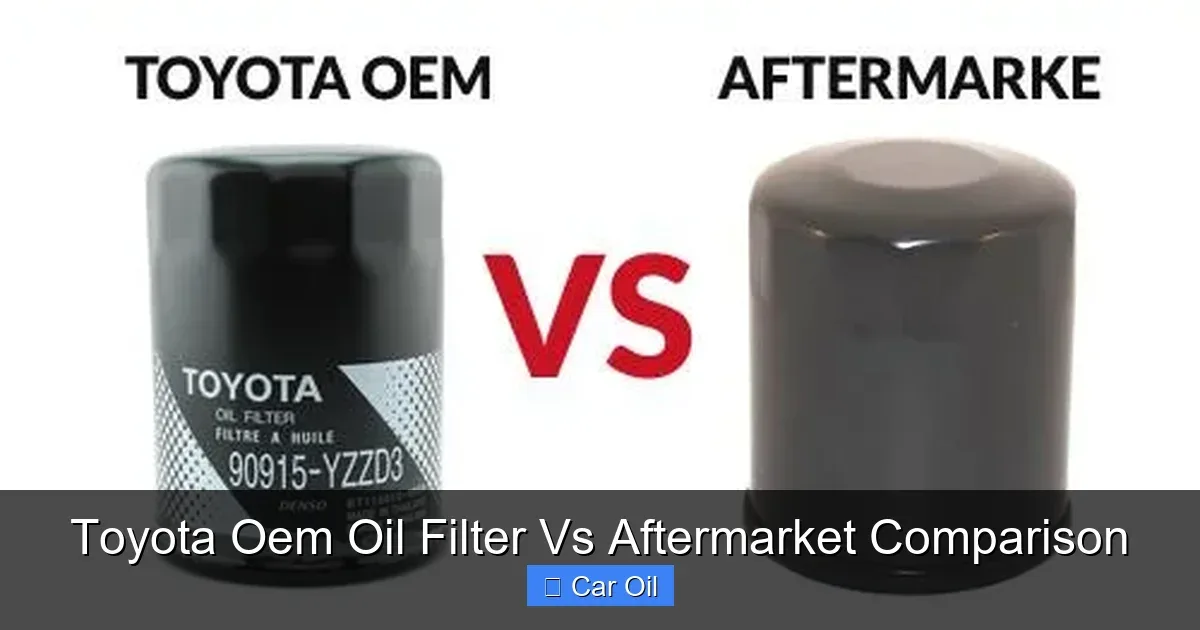

Filter Facts – OEM vs. Aftermarket and Why Quality Affects Capacity

The oil filter on the 2003 Sequoia holds roughly 0.6 quarts. That’s why the total capacity jumps from 6.3 (pan only) to 6.9 quarts when you change the filter. If you use a smaller or larger filter, the capacity changes.

Some aftermarket filters are shorter and hold only 0.4 quarts. Some oversized filters hold 0.8. If you don’t account for that variance, you overfill or underfill.

Genuine Toyota filter (part number 90915-YZZD3): This is the reference. It’s made by Denso or Toyota’s own supplier. The canister is steel with a specific bypass valve pressure.

It holds exactly 0.6 quarts. Million-mile 2UZ-FE engines often ran these filters their whole life.

Aftermarket filters (Wix, Purolator, Mobil 1, Fram): Quality varies. Wix and Purolator are generally well-regarded. Some budget Fram filters use paper end caps that can collapse.

The worst offenders are no-name filters with a different inner diameter that bypasses unfiltered oil.

Here’s a quick comparison:

If you switch to a filter with a different capacity, adjust your initial fill accordingly. A shorter filter means you start with slightly less oil. A taller filter means you might need to add less at the end. The best advice: stick with the OEM filter or a premium aftermarket one that matches the capacity.

Image source: Web (Bing) / autoclubcar.com (Web image (fair-use with source credit))

Our research shows that owners who run Toyota OEM filters consistently report fewer oil pressure issues. It’s worth the extra dollar or two. If you’re servicing a similar Toyota V8, like the one in the 2017 Toyota Tundra, the same filter logic applies.

When Synthetic Oil Makes Sense (and When It Doesn’t)

The 2UZ-FE was designed long before synthetic oil became mainstream. It runs perfectly fine on conventional 5W-30. So do you need synthetic?

Not really. But there are conditions where it helps.

Switch to synthetic if:

• You live in extreme cold (below -20°F). Synthetic stays fluid at lower temperatures and reaches bearings faster.
• You tow heavy loads regularly. The 2UZ-FE works harder under load; synthetic oil resists thermal breakdown better.
• You plan to stretch oil changes beyond 5,000 miles. Synthetic can handle longer intervals, but Toyota still recommends 5,000 miles for severe service.
• You’re at high mileage and burning oil. Synthetic’s seal conditioners can reduce small leaks.

Stick with conventional if:

• You change oil every 3,000, 5,000 miles. There’s no benefit to paying double.
• Your engine has no leaks and runs clean. Many Sequoias hit 200k on conventional without issues.
• You’re on a tight budget. A conventional change costs around $25, $30. Synthetic runs $50, $70.

Mixing synthetic and conventional is fine, but don’t expect the synthetic’s benefits if you cut it halfway. Once you switch to synthetic, you can switch back. The idea that “you can’t go back” is a myth.

The engine doesn’t care.

If you decide on synthetic, use a full synthetic 5W-30 with API SL or newer. Brands like Mobil 1, Castrol Edge, or Valvoline all meet the spec. Avoid “synthetic blend” unless you’re comfortable with a mixture.

High-Mileage Engines – Adjusting Oil Choice for 150k+ Miles

Once your Sequoia passes 150,000 miles, the engine isn’t the same as it was when new. Piston rings may have slight wear. Valve seals can harden and leak.

The rear main seal might seep. That’s when a high-mileage oil becomes a smart choice.

High-mileage oil contains: seal conditioners that soften dried-out rubber gaskets, detergents that clean sludge from ring grooves, and a slightly higher viscosity base that helps fill worn clearances.

Does it work? In our research, aggregate owner feedback on 2UZ-FE engines with 180k+ miles shows a noticeable reduction in oil consumption after switching to a high-mileage 5W-30. Not a cure for a blown engine, but a reasonable maintenance upgrade.

What about switching to 10W-30? Some owners bump up viscosity to reduce burning. That’s a band-aid, not a fix. If your engine is burning a quart every 1,000 miles, the viscosity change masks the problem but doesn’t solve it.

First try a high-mileage 5W-30. If consumption is still high, then consider a 10W-30, but only in warm climates. In cold weather, 10W-30 can cause startup clatter.

Toyota itself doesn’t publish a separate high-mileage spec for the 2UZ-FE. The manual says 5W-30 for the vehicle’s life. The high-mileage oils simply add conditioners that are compatible with the API SL or newer requirement.

One more thing: if your Sequoia has over 200,000 miles and the oil pressure gauge sits lower than it used to, check with a mechanical gauge. A reading below 10 psi at hot idle is a sign of bearing wear, not a need for thicker oil. That warrants a mechanic’s inspection, not a different bottle.

For other Toyota V8s at similar mileage, the same advice applies. Our guide on the 2018 Toyota Tundra oil type covers high-mileage considerations for that platform.

Safety, Disposal, and Legal Must-Knows

Used engine oil contains heavy metals and carcinogens. Never pour it down a drain, onto the ground, or into a storm sewer. That’s illegal under the EPA’s used oil management standards.

Collect the old oil in a sealable container. Most auto parts stores accept used oil for free, up to five gallons per visit. Check with your local municipality for drop-off locations.

Fines for improper disposal can run into the thousands.

The oil filter also counts as hazardous waste. Drain it overnight on a rag, then place it in a plastic bag. Many recycling centers accept drained filters alongside the oil.

Dispose of oil-soaked rags according to local fire codes. They can self-ignite if piled wet.

When to Walk Away – Signs You Need a Mechanic, Not a DIY

Not every problem is solved with a drain pan and a wrench. If you spot these signs, stop and call a shop:

• Oil pressure warning light stays on after an oil change. That could mean a clogged pickup tube or a failing pump.
• Heavy oil leak from the front or rear of the engine. Valve cover gaskets and the rear main seal are common failure points on high-mileage 2UZ-FE engines.
• Metal flakes in the drained oil. Fine glitter is normal wear. Chunks or sparkles mean bearing or cam damage.
• Cross-threaded drain plug. If the plug won’t tighten smoothly, you risk stripping the oil pan. A helicoil repair or new pan is a job for a professional.

If you’re unsure, a good mechanic will verify the oil level and pressure for free. Better safe than rebuilding an engine.

Verified Specs Cheat Sheet (Printable Reference)

Keep this table handy for your next oil change.

Write the mileage intervals in the manual with a permanent marker. It saves confusion later.

Frequently Asked Questions

Can I use 10W-30 in my 2003 Sequoia?

Only in warm climates and only if 5W-30 is unavailable. Toyota recommends 5W-30 for all temperatures. Using 10W-30 in cold weather can cause startup clatter and reduced oil flow to the timing chain tensioner.

How do I know if my Sequoia burns oil?

Check the dipstick every 500 miles after an oil change. If you need to add more than a quart between changes, your engine is consuming oil. Switch to a high-mileage 5W-30 and monitor.

If consumption exceeds one quart per 1,000 miles, have a mechanic inspect the valve seals and piston rings.

Is it okay to switch between conventional and synthetic oil?

Yes. The 2UZ-FE doesn’t care. You can switch back and forth without harm.

Just maintain the same viscosity and API rating. If you blend them, you lose some of synthetic’s performance benefits, but the engine won’t be damaged.

What happens if I overfill the oil?

Overfilling by more than half a quart can cause oil foaming. Foam reduces oil pressure and can starve bearings. If you overfill, drain some oil through the drain plug until the dipstick reads between low and full.

Run the engine and recheck.

Where can I find the correct oil filter for my Sequoia?

The OEM part number is 90915-YZZD3. You can order it from any Toyota dealer or reputable online parts retailer. Good aftermarket alternatives include Wix 51356 or Purolator PL14610.

Avoid no-name filters with paper end caps.

For other Toyota models with similar engines, check our guide on the 2019 Tundra oil type or the 2020 Corolla LE oil type for their specific specs.
