2006 Toyota Corolla Oil Capacity: How Many Quarts?

If you own a 2006 Toyota Corolla, the first thing you need to know is the oil capacity. The answer is 4.5 quarts with a filter change for the standard 1.8L engine. That's the number that keeps your engine healthy and avoids expensive mistakes.

Manufacturer specifications call for SAE 5W-30 motor oil with API certification. As of 2026, these cars are nearly two decades old. Many have well over 150,000 miles on them.

Getting the right oil and the right amount is one of the simplest ways to keep yours running reliably.

The Exact Oil Capacity for a 2006 Toyota Corolla (Quick Answer)

Here's the short version. With a filter change, you need 4.5 US quarts (4.3 liters) of 5W-30 oil. Without a filter change, you need 4.2 quarts (4.0 liters).

But there's a catch. The 2006 Corolla came with two different engines. Most models have the 1.8L 1ZZ-FE.

The sporty XRS trim has the 2.0L 2ZZ-GE, which takes more oil.

Image source: Bing (Web (fair-use with source credit))

Always check your dipstick after filling. The numbers above are starting points. Your engine's exact needs depend on how much oil drained out and whether the car is on level ground.

Why Getting the Right Oil in Your 2006 Corolla Matters More Than You Think

Using the wrong oil can shorten the life of this engine. The 1ZZ-FE has a known weakness. It is prone to oil sludge buildup when oil changes are skipped or the wrong viscosity is used.

Sludge is thick, gooey oil that clogs passages and starves bearings. Once it forms, it is hard to remove. The engine can fail within thousands of miles.

Using the correct 5W-30 viscosity matters because the 1ZZ-FE was designed around it. Thicker oil does not flow well enough at startup. Thinner oil may not protect the bearings at high temperatures.

The same principles apply to other Toyota engines from this era, including the Camry's powertrain and the RAV4 lineup, which share similar design features.

The 1ZZ-FE Engine: What You Need to Know About This Engine's Oil Needs

The 1ZZ-FE is a 1.8L four-cylinder engine Toyota produced from 1998 through 2008. It is reliable when maintained properly. But it has a reputation for oil consumption and sludge problems.

The main cause is the PCV system design. The 1ZZ-FE has a small oil return passage that can clog. When it does, oil gets trapped in the cylinder head and cooks into sludge.

Regular oil changes with the right oil prevent this.

Toyota issued a technical service bulletin (TSB 0046-07) clarifying oil viscosity recommendations for this engine. The bulletin confirms 5W-30 is the correct choice for most conditions. In extremely cold climates, 0W-30 may be used if the owner's manual allows it.

This same engine was used in the Corolla and the Matrix. If you have worked on similar Toyota powertrains, you know the routine. Clean oil at the right level is the secret to a long engine life.

Oil Capacity Breakdown: 1.8L vs. 2.0L (XRS Trim)

The difference between the two engines is significant. The XRS trim with the 2ZZ-GE engine was built for performance. It has a higher redline and different oil requirements.

Image source: Bing (Web (fair-use with source credit))

1.8L 1ZZ-FE

• Capacity: 4.5 quarts with filter
• Viscosity: 5W-30
• Found in: CE, LE, S trims
• Oil filter: Toyota 90915-YZZD3 or equivalent

2.0L 2ZZ-GE (XRS)

• Capacity: 5.0 quarts with filter
• Viscosity: 5W-30 (or 0W-30 in cold climates)
• Found in: XRS trim only
• Oil filter: Same as 1ZZ-FE

The XRS is rare. Most 2006 Corollas on the road have the 1.8L engine. If you are not sure which engine you have, check the VIN or look under the hood.

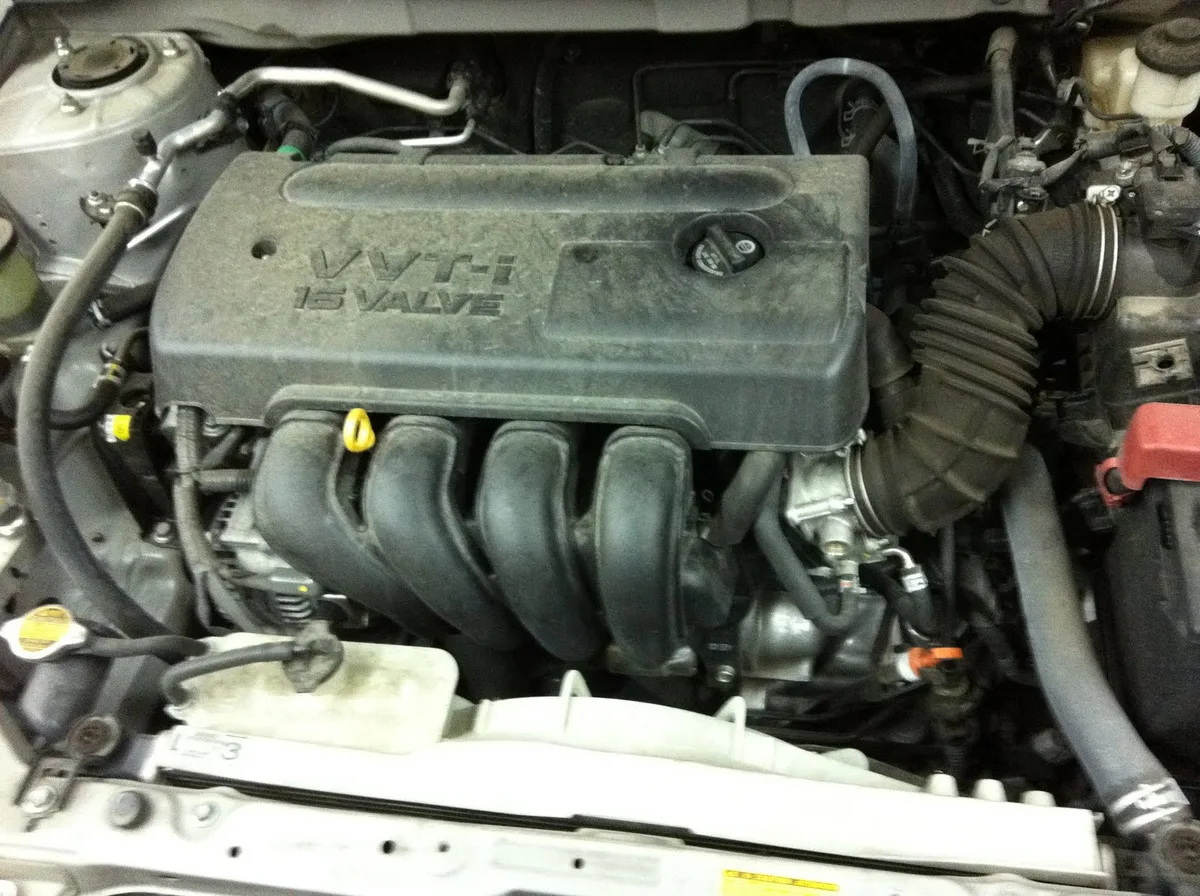

The 2ZZ-GE has "VVT-i" on the engine cover and a different intake manifold.

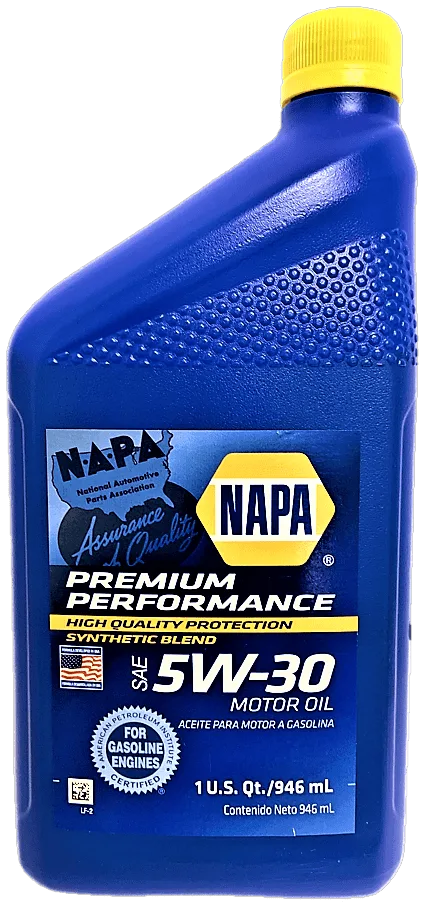

What Type of Oil Should You Use? Viscosity, Rating, and Brand Notes

Stick with 5W-30. That is what the owner's manual specifies and what the engine was designed for.

Here is what to look for on the bottle:

• SAE 5W-30 viscosity
• API certification mark (the starburst symbol)
• API service category SL or SM (SN and SP are also fine)
• ILSAC GF-4 or higher

Do not use 0W-20. Some modern Toyotas use it, but the 2006 Corolla was not designed for it. The clearances inside the 1ZZ-FE engine are larger than modern engines.

The thinner oil will not protect as well at high temperatures.

Synthetic oil is a good choice for this engine. It helps especially in extreme temperatures or with short trips. Conventional oil works fine too, as long as you change it on schedule.

The same applies to other Toyota vehicles from this period, including the Highlander and Sienna, which share similar engine architecture.

For oil certification standards, the API maintains the official classification system. The SAE sets the viscosity grades that appear on every bottle. These are the two main organizations that define what 5W-30 actually means.

Step-by-Step: How to Check and Fill Your Oil the Right Way

Checking and filling your oil is straightforward. But doing it wrong can lead to overfilling or underfilling. Both cause problems.

Image source: Web (Bing) / shopee.ph (Web image (fair-use with source credit))

How to check the oil level:

1. Park on level ground.
2. Turn the engine off and wait 5 minutes for the oil to settle.
3. Pull the dipstick out and wipe it clean.
4. Insert it fully, then pull it out again.
5. Read the level. It should be between the low and high marks.

How to add oil:

1. Remove the oil filler cap on top of the engine.
2. Add oil in small amounts. Start with half a quart.
3. Wait 30 seconds for the oil to drain into the pan.
4. Check the dipstick again.
5. Repeat until the level is at the full mark.

Do not overfill. Too much oil causes foaming and increased pressure. That can damage seals and gaskets.

If you accidentally overfill, drain some out through the drain plug.

Common Mistakes That Can Kill Your 2006 Corolla's Engine

These are the most common errors people make with this car.

Using the wrong viscosity. Some owners try 10W-30 or 0W-20. The 1ZZ-FE needs 5W-30. Using anything else can reduce protection or cause sludge.

Overfilling or underfilling. Both are bad. Underfilling starves the engine. Overfilling causes foaming and pressure buildup.

Always check the dipstick after filling.

Skipping oil changes. This is the biggest killer of the 1ZZ-FE engine. Oil breaks down over time. It loses its ability to protect and clean.

Sticking to the schedule is cheap insurance.

Using cheap filters. A low-quality oil filter can collapse or bypass. This sends unfiltered oil through the engine. Stick with a reputable brand or use the OEM Toyota filter.

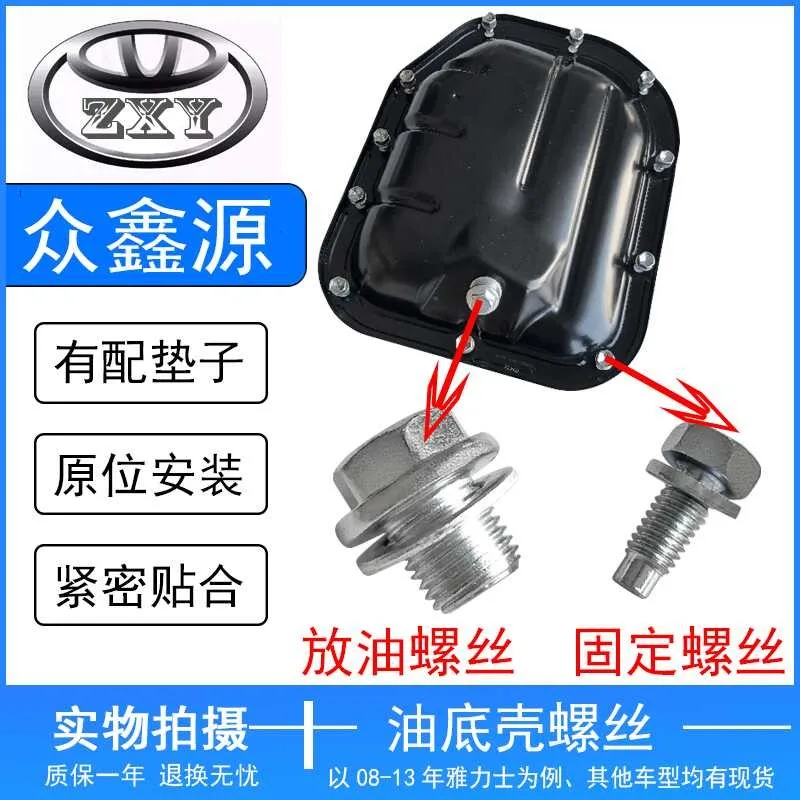

Not replacing the crush washer. The drain plug uses a crush washer that seals the connection. Reusing an old one can cause leaks. Replace it every oil change.

The size is 14mm.

The Sludge Problem: Why Your 1ZZ-FE Engine Needs Consistent Oil Changes

The 1ZZ-FE engine has a well-documented sludge issue. Toyota even extended the warranty on some models because of it. The problem comes from the engine's PCV system design.

The oil return passage in the cylinder head is narrow. It can clog with deposits over time. When it clogs, oil gets trapped in the head.

Heat from the engine cooks it into sludge.

Once sludge forms, it blocks oil passages. Bearings and camshafts get starved of oil. The engine can fail quickly.

The only prevention is consistent oil changes. Use the right oil. Change it on time.

Do not stretch intervals beyond what the manufacturer recommends. This is especially important for a car that is nearly 20 years old.

When to Change Your Oil: Interval Recommendations for Real-World Driving

Toyota recommends 5,000 miles for severe service and 7,500 miles for normal service. Most 2006 Corollas fall under severe service.

Severe service includes:

• Short trips under 5 miles
• Stop-and-go traffic
• Extreme temperatures
• Dusty roads
• Towing or carrying heavy loads

For a car that is two decades old, the safe bet is 5,000 miles or 6 months. Whichever comes first. If you use synthetic oil, you can stretch to 7,500 miles.

But do not push it further.

Oil ages even when the car is parked. Moisture and acids build up over time. If you drive less than 5,000 miles a year, change the oil once a year at minimum.

Synthetic vs. Conventional Oil: What's Best for a 2006 Corolla?

This is a common question. Here is the honest answer.

Conventional oil works fine if you change it every 5,000 miles. It is cheaper and meets the manufacturer's specifications. For a low-mileage garage queen, it is perfectly adequate.

Synthetic oil offers better protection in extreme temperatures. It resists breakdown longer. It flows better at cold startup.

For a high-mileage engine, it can help reduce sludge formation.

The manufacturer allows either. The owner's manual for the 2006 Corolla does not require synthetic oil. It recommends API SL or SM rated oil of the correct viscosity.

If your car burns oil between changes, synthetic can help reduce that. It is more stable at high temperatures and evaporates less. But if the engine is already consuming oil, synthetic will not fix worn rings or valve seals.

Tools and Supplies You'll Need for a DIY Oil Change

If you want to change the oil yourself, here is what you need.

Tools:

• 14mm socket or wrench for the drain plug
• Oil filter wrench
• Torque wrench (optional but recommended)
• Funnel
• Jack stands and a jack or ramps
• Drain pan (at least 6 quarts capacity)
• Shop rags or paper towels

Supplies:

• 5 quarts of 5W-30 oil (buy a 5-quart jug)
• Oil filter (Toyota 90915-YZZD3 or equivalent)
• 14mm crush washer (one per change)
• Gloves (optional but helpful)

Total cost for a DIY change is about $30 to $45. A shop will charge $60 to $100. The savings add up over time.

Expert Tips From a Mechanic Who's Worked on Dozens of These Engines

Here are some tips based on real experience with the 1ZZ-FE engine.

Warm the engine before draining. Cold oil flows slowly. A warm engine drains faster and removes more contaminants. Let it run for 2 to 3 minutes before you start.

Torque the drain plug to 30 ft-lb. Do not overtighten. The oil pan is aluminum and the threads are easy to strip. Use a torque wrench if you have one.

Lubricate the filter gasket. Rub a little fresh oil on the rubber gasket before installing the new filter. This prevents the gasket from sticking and makes removal easier next time.

Hand-tighten the filter. Turn it until it makes contact, then give it another three-quarters turn. Do not use a wrench to tighten it further. That makes removal a nightmare.

Reset the maintenance light. If your Corolla has a maintenance reminder light, you can reset it after an oil change. Turn the key to the ON position without starting the engine. Press the trip reset button until the light goes off.

Quick Reference Card: 2006 Corolla Oil Specs at a Glance

Image source: Web (Bing) / market.yandex.ru (Web image (fair-use with source credit))

FAQs About 2006 Toyota Corolla Oil Capacity and Changes

How much oil does a 2006 Toyota Corolla take?

The 1.8L engine takes 4.5 quarts with a filter change. The 2.0L XRS engine takes 5.0 quarts with a filter change.

Can I use 0W-20 in my 2006 Corolla?

No. The 1ZZ-FE engine is not designed for 0W-20. Stick with 5W-30 or 0W-30 if your owner's manual allows it for cold climates.

What happens if I overfill the oil?

Overfilling causes foaming. Foam does not lubricate well. It also increases pressure inside the engine, which can damage seals and gaskets.

How often should I change the oil in a 2006 Corolla?

Every 5,000 miles or 6 months for severe service. Every 7,500 miles for normal service. For a car that is nearly 20 years old, stick with 5,000 miles.

Is synthetic oil worth it for a 2006 Corolla?

Yes, especially if you live in extreme temperatures or do a lot of short trips. It offers better protection and resists breakdown longer. But conventional oil is fine if you change it on schedule.

Why does my 2006 Corolla burn oil?

The 1ZZ-FE engine is known for oil consumption as it ages. Worn piston rings and valve seals are the usual causes. Keeping the oil level correct between changes is important.

Can I use the same oil filter as the 1ZZ-FE on the 2ZZ-GE engine?

Yes. The oil filter is the same for both engines. The Toyota part number is 90915-YZZD3 or an equivalent from a reputable brand.
