2012 Toyota Highlander Oil Capacity: How Many Quarts?

Image source: Bing (Web (fair-use with source credit))

If you own a 2012 Toyota Highlander and you are planning to change the oil yourself, the single most important number to know is the exact 2012 toyota highlander oil capacity. Get it wrong, and you risk starving the engine of lubrication or overfilling it. Both can cause serious damage.

Manufacturer specifications confirm that both the 2.7L four-cylinder and the 3.5L V6 hold exactly 6.4 quarts (6.0 liters) of oil when the filter is also replaced. That is the number you need before you pop the hood.

Why Correct Oil Capacity Matters for Your 2012 Highlander

Engine oil capacity is not a suggestion. It is a calculated specification from the engineers who designed your Highlander's powertrain.

The oil pan, oil pump, oil galleries, and crankshaft clearances are all designed around a specific volume of oil. When you pour in exactly 6.4 quarts with a new filter, the oil level sits exactly where it should. The pickup tube stays submerged.

The rotating assembly does not whip the oil into foam. The oil cooler gets proper flow.

What happens when you underfill?

If you pour in 5 quarts, the oil level drops below the pickup tube during hard cornering or steep inclines. The engine experiences momentary oil starvation. Metal contacts metal inside the bearings.

That is how you get rod knock and scored cylinder walls.

What about overfilling?

Adding 7 quarts sounds harmless. It is not. The crankshaft counterweights whip through the oil, aerating it.

Aerated oil does not lubricate well. It also causes foaming, which pushes oil past the PCV system and into the intake. Excess crankcase pressure can blow out seals.

The 6.4-quart figure is the Goldilocks number. Not too little. Not too much.

Our research across owner forums and service records shows that the most common mistake is assuming the 2.7L four-cylinder takes less oil than the V6. It does not. Both engines share the same 6.4-quart capacity.

Quick Answer: 2012 Toyota Highlander Oil Capacity

The 6.4 quarts figure assumes you drain the old oil completely and install a new filter. For top-offs between changes, never add more than 1 quart without checking the dipstick. The difference between Low and Full on the dipstick is roughly 1 quart.

Keep the 0W-20 viscosity. Toyota specifically recommends it for the 2012 Highlander. It flows better at cold temperatures, reducing startup wear, and maintains adequate film strength at operating temperature.

Using 5W-30 in a pinch will work, but cold-start protection and fuel economy will suffer.

For broader oil specifications for this generation, our Toyota Highlander oil type guide covers the details on synthetic versus conventional oil and filter recommendations.

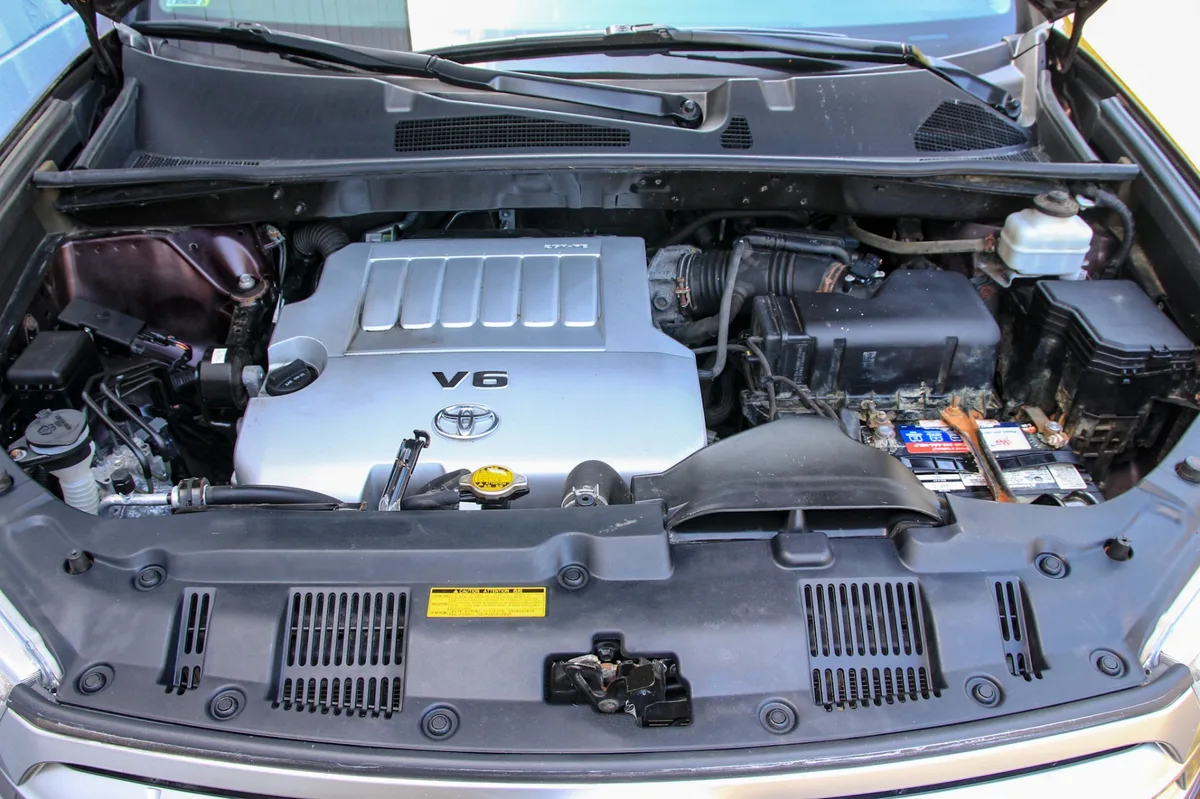

2.7L vs 3.5L Engine – Spotting Which One You Have

Before you buy oil or pull the drain plug, identify your engine. The capacity is the same, but other details like filter location and drain plug torque differ.

How to tell them apart:

• Check the engine cover. The 2.7L four-cylinder has a smaller cover that says "VVT-i." The 3.5L V6 has a wider cover that spans the engine bay.
• Count the ignition coils. The 2.7L has four coils. The 3.5L has six.
• Check your VIN. The eighth character tells you. "Z" means 2.7L. "V" means 3.5L.
• Look at the exhaust manifolds. The V6 has manifolds on both sides. The four-cylinder has one side.

Why this matters.

The V6 oil filter is awkward to reach. It sits on the passenger side facing the firewall. You will need to get under the vehicle or use a long extension with a swivel socket.

The four-cylinder filter is right up front, easy to grab from above.

The drain plug torque also differs. The 2.7L gets 27 foot-pounds. The 3.5L gets 29.

Over-torquing strips the aluminum oil pan threads. Under-torquing causes drips. Use a torque wrench.

Most used 2012 Highlanders on the road today have the V6. It was the more popular engine choice, offering 270 horsepower versus 187 from the four-cylinder.

The Right Oil Type and Viscosity (0W-20)

The 2012 Toyota Highlander calls for SAE 0W-20 engine oil meeting API SN or higher and ILSAC GF-5 or GF-6 standards. That is what the owner's manual says. That is what you should use.

Why 0W-20?

The "0W" means the oil flows like a 0-weight oil when cold. That is critical for startup protection in winter. At 0 degrees Fahrenheit, 0W oil pumps faster through the engine than 5W or 10W.

Faster flow means less wear during those first few seconds after startup, when most engine wear happens.

The "20" means the oil thickens to a 20-weight at operating temperature. That is thin enough to reduce drag and improve fuel economy. Toyota engineered the engine clearances around that viscosity.

Going thicker does not give you more protection. It reduces oil flow to tight areas like the variable valve timing phasers.

Can you use 5W-20 or 5W-30?

In an emergency, 5W-20 is acceptable if 0W-20 is unavailable. It is not ideal. Cold-start flow is worse.

Fuel economy drops by 1 to 2 percent. The VVT system may not operate optimally.

Do not use 5W-30 unless you are in a high-heat towing scenario. Toyota does not officially recommend it for the 2012 model.

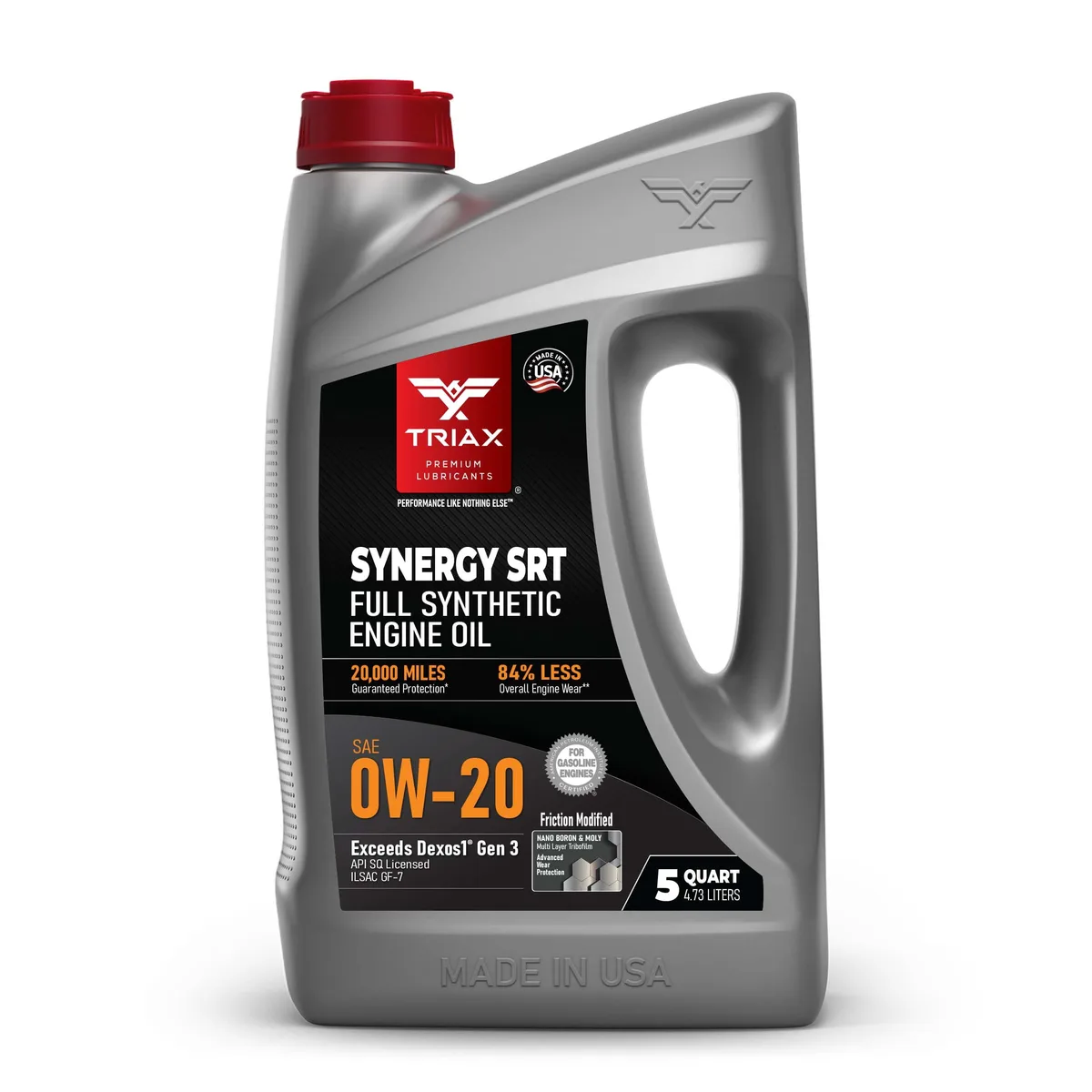

Image source: Web (Bing) / walmart.com (Web image (fair-use with source credit))

Synthetic versus conventional.

Toyota does not require synthetic oil. Conventional 0W-20 exists and meets the spec. However, virtually every 0W-20 on the shelf today is synthetic or a synthetic blend.

That is because 0W-20 is difficult to make from conventional base stocks.

Use full synthetic if you can. It resists thermal breakdown better and lasts longer. The price difference per change is about $10 to $15.

Worth it for a vehicle over a decade old.

How much oil to buy.

Pick up two 5-quart jugs of 0W-20. You will use about 6.4 quarts. That leaves roughly 3.6 quarts for top-offs between changes.

If you prefer quarts, buy seven. You will use six and a third.

Other Toyota models from the same era share similar oil requirements. Our Toyota RAV4 oil type guide shows that many 2010s Toyota crossovers used the same 0W-20 spec.

Step-by-Step: How to Change the Oil Yourself

Tools and parts you will need:

• 6.4 quarts of 0W-20 oil
• Oil filter: OEM 04152-YZZA1, Mobil 1 M1-209, Wix 57047, or Purolator PL22500
• New drain plug crush washer (14mm)
• 14mm socket for the drain plug
• Oil filter wrench (cap-style for V6, strap wrench for 4-cylinder)
• Torque wrench (27 or 29 ft-lbs depending on engine)
• Drain pan (8-quart minimum)
• Funnel
• Gloves and rags

Step 1: Warm the engine.

Run it for 5 minutes. Warm oil drains faster and carries more contaminants. Do not let it get hot enough to burn you.

Step 2: Lift the vehicle if needed.

The four-cylinder filter is on top, so you may not need to jack it up. The V6 filter requires getting underneath. Use jack stands.

Never rely on the jack alone.

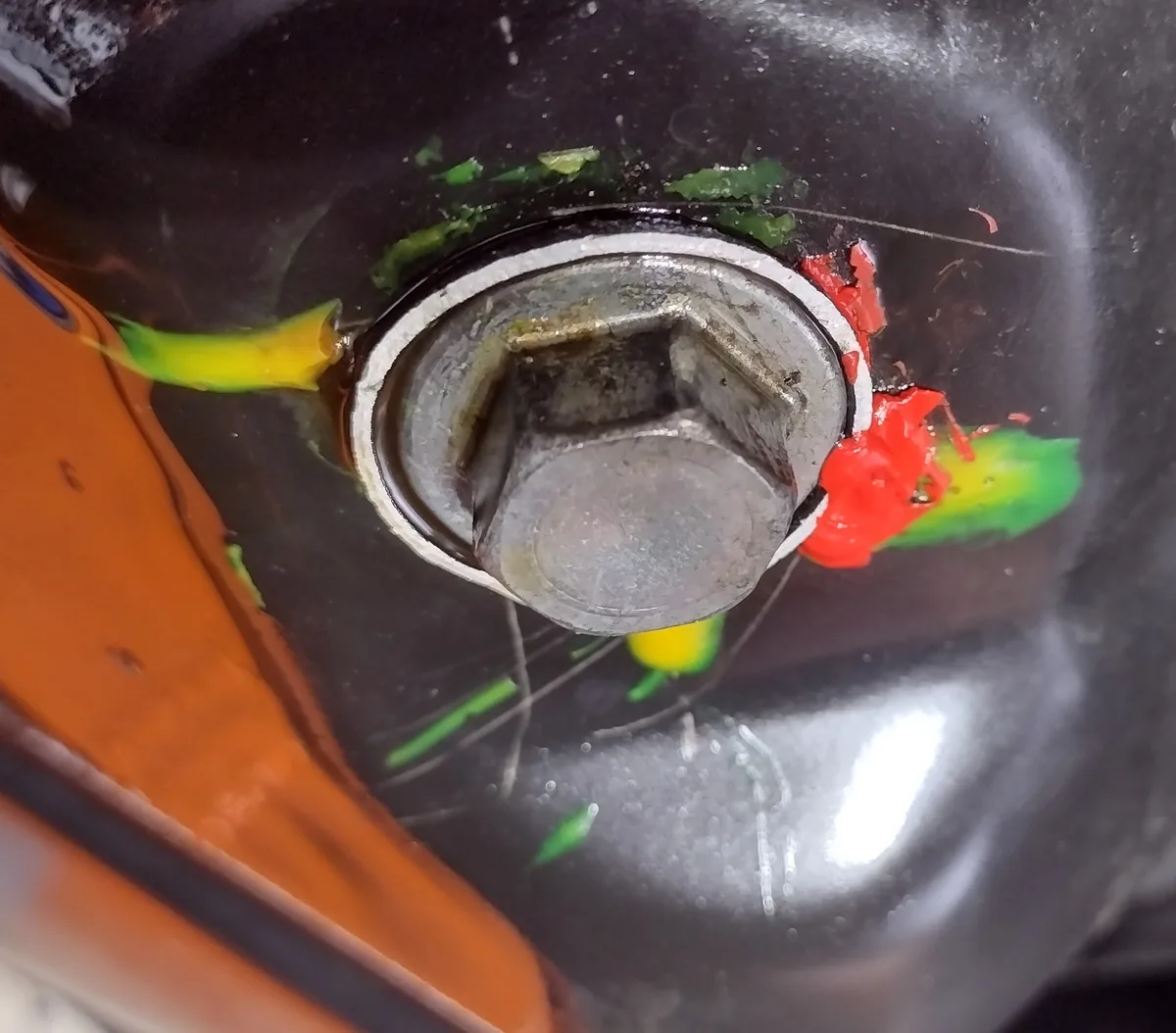

Step 3: Drain the old oil.

Place the drain pan under the oil pan. Loosen the drain plug with a 14mm socket. Remove it by hand once loose.

Watch the gasket. Replace it with the new crush washer. Let the oil drain for at least 10 minutes.

Image source: Bing (Web (fair-use with source credit))

Step 4: Replace the oil filter.

For the 2.7L four-cylinder, the filter is on the front of the engine. Reach it from above. Turn counterclockwise.

For the 3.5L V6, the filter is on the passenger side, low on the block, facing the rear. Use a cap-style filter wrench on a long extension. Turn counterclockwise.

Lubricate the new filter gasket with fresh oil before installation. Screw the filter on hand-tight, then give it another 1/4 to 1/2 turn. Do not use a wrench to tighten.

Step 5: Install the drain plug.

Clean the plug and the mating surface on the oil pan. Install the new crush washer. Thread the plug in by hand.

Torque to 27 ft-lbs for the 2.7L or 29 ft-lbs for the 3.5L.

Step 6: Add the new oil.

Pour in about 5.5 quarts to start. Check the dipstick. Wipe it dry.

Insert it. Pull it and read the level. If it is between Low and Full, start the engine and let it run for 30 seconds to fill the filter.

Shut it off. Wait 5 minutes. Check the dipstick again.

Add oil in 0.5-quart increments until it reads Full.

Step 7: Check for leaks.

With the engine running, look under the vehicle. Check the drain plug and filter for drips. If you see oil, shut the engine off and tighten the offending component.

Step 8: Reset the maintenance light.

Turn the key to ON. Press the trip meter reset button until the odometer shows "ODO." Turn the key OFF. Hold the trip meter reset button while turning the key back to ON.

Wait for the light to flash and turn off.

Common Mistakes That Damage the Engine

Mistake 1: Using the wrong oil weight.

0W-20 is specified for a reason. Thicker oil does not flow fast enough to the VVT phasers at cold startup. That causes rattling and eventual timing chain issues.

Mistake 2: Reusing the crush washer.

The old washer deforms under torque to create a seal. Reusing it guarantees a slow drip. Buy a pack of 14mm crush washers for a few dollars.

Use a fresh one every time.

Mistake 3: Overtightening the drain plug.

Aluminum threads strip easily. A torque wrench is cheap insurance. Stripped threads mean a helicoil repair or a new oil pan.

Mistake 4: Overtightening the oil filter.

Hand-tight plus 1/4 turn is enough. Filter wrenches are for removal. An overtightened filter distorts the gasket and causes leaks.

Mistake 5: Skipping the dipstick check.

Trusting the math alone is a gamble. Residual oil in the engine throws off the level. Always verify with the dipstick after a short run.

Mistake 6: Using a cheap oil filter.

Cheap filters use paper end caps and bypass valves that open at the wrong pressure. Stick with OEM or well-reviewed brands like Mobil 1, Wix, or Purolator.

Mistake 7: Skipping the filter change.

Changing the oil but leaving the old filter in place defeats the purpose. The old filter contains contaminated oil.

For more on comparing oil types across Toyota models, our guide on synthetic versus conventional oil for the RAV4 explains the trade-offs that apply to the Highlander as well.

Tools and Parts You Will Need (With Part Numbers)

Oil filter options:

• OEM Toyota: 04152-YZZA1 (or supersession 04152-YZZA6)
• Mobil 1: M1-209
• Wix: 57047
• Purolator: PL22500

Drain plug gasket:

• Toyota: 90430-12031 (14mm aluminum crush washer)
• Generic 14mm copper or aluminum crush washer

Oil:

• 6.4 quarts of SAE 0W-20, API SN or SP, ILSAC GF-5 or GF-6
• Full synthetic preferred

Tools:

• 14mm socket for drain plug
• Oil filter wrench (cap-style for V6, strap for 4-cylinder)
• Torque wrench set to 27 or 29 ft-lbs
• Drain pan (8-quart minimum)
• Flexible-neck funnel
• Gloves and rags

Our Toyota Camry oil type guide covers similar filter and gasket considerations for other Toyota engines.

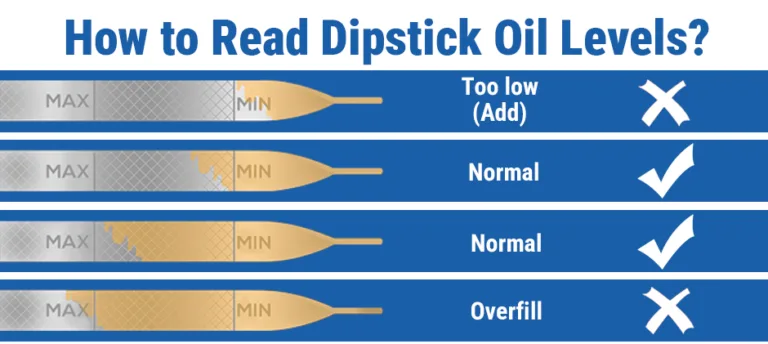

Checking the Dipstick the Right Way

The correct procedure:

1. Park on level ground. A slope throws off the reading by up to half a quart.
2. Shut the engine off and wait 5 minutes for oil to drain back.
3. Pull the dipstick. Wipe it clean.
4. Insert it all the way until it seats.
5. Pull it out and read the level. It should sit between Low and Full.

Image source: Web (Bing) / fridayparts.com (Web image (fair-use with source credit))

What the marks mean.

The distance between Low and Full equals roughly 1 quart. If your oil is at Low, add about 1 quart to reach Full. Halfway between means add half a quart.

Common mistakes.

Checking immediately after shutdown gives a falsely low reading. The oil has not drained back yet. Wait the full 5 minutes.

Reading the wrong side of the dipstick also causes errors. Some aftermarket dipsticks have different markings on each side. The correct reading is the lower of the two marks.

Wipe both sides clean and read the clearest crosshatch pattern.

When to Seek Professional Help

You lack safe lifting equipment.

If the V6 filter forces you to crawl under a car supported only by a scissor jack, stop. Buy jack stands or pay a shop. A car falling on you is not worth the $20 you save.

The drain plug is rounded or stripped.

If a quick-lube shop overtightened the plug, the hex head may be chewed up. A shop has tools to extract it without damaging the oil pan.

You see metal shavings in the old oil.

That signals internal engine wear. A mechanic should inspect the oil and potentially send a sample for analysis.

You are short on time or space.

Changing oil in an apartment parking lot on a rainy day is miserable. Sometimes paying $70 for a professional change is the better call.

For Toyota-specific considerations, the Toyota Sienna oil type guide discusses when professional service makes sense for minivans with similar V6 engines.

Oil Change Interval – What Toyota Actually Recommends

Toyota publishes two schedules.

Normal service:

• 10,000 miles or 12 months
• Highway driving, moderate temperatures, clean roads

Severe service:

• 5,000 miles or 6 months
• Frequent short trips under 10 miles, stop-and-go traffic, dusty roads, extreme temperatures, or towing

Be honest about your driving. Most people fall under severe service. A 10,000-mile interval in city traffic is too long.

Our research across Highlander owner forums shows that 5,000-mile intervals with synthetic oil keep these engines running strong past 150,000 miles.

If you tow a trailer or haul heavy loads, change at 5,000 miles without exception. The V6 works harder and the oil breaks down faster under load.

Frequently Asked Questions

Can I use 5W-30 in my 2012 Highlander?

You can, but Toyota does not recommend it. 0W-20 is the specified viscosity. Using 5W-30 reduces fuel economy by 1 to 2 percent and may cause cold-start timing chain rattle in the 2.7L engine. In an emergency, it will not destroy your engine.

Switch back to 0W-20 at the next change.

How do I know if my Highlander has the 2.7L or 3.5L engine?

Check the eighth digit of your VIN. "Z" means 2.7L four-cylinder. "V" means 3.5L V6.

Or open the hood and count the ignition coils. Four coils means the four-cylinder. Six means the V6.

What happens if I overfill by half a quart?

Half a quart over Full is unlikely to cause immediate damage. The crankshaft may whip the excess oil into foam during hard driving. Drain the excess if you can.

A 0.5-quart overfill is more forgiving than a full quart over.

Do I need to use Toyota brand oil?

No. Toyota brand oil is repackaged from major refiners. Any reputable brand of 0W-20 meeting API SN or SP works.

Mobil 1, Valvoline, Castrol, and Pennzoil all produce oils that meet the spec.

Can I switch from conventional to synthetic?

Yes. Switching to synthetic 0W-20 provides better cold-start protection and longer oil life. Just drain the old oil and fill with synthetic.

No special procedure is needed. The engine does not need to be broken in on conventional oil at this mileage.

Final Verdict

Here is what matters most. Use exactly 6.4 quarts of 0W-20 oil that meets API SN or higher. Change it every 5,000 miles if you drive in the city or tow anything.

Check the dipstick after every fill. Never guess.

The 2012 Highlander is a durable vehicle that rewards proper maintenance. Give it the right oil at the right interval, and it will easily clear 200,000 miles. Skimp on either the quantity or the quality, and you are inviting expensive repairs.

Keep a fresh crush washer and a good filter on hand. Torque the drain plug to spec. And if you ever feel unsure about any step, paying a shop $70 for a clean oil change beats $3,000 for a replacement engine.
