Toyota RAV4 Oil Capacity: How Much Does It Take?

If you're looking up the toyota rav4 oil capacity, you're probably standing in an auto parts aisle or staring at a dipstick, wondering how much to pour in. Get the number wrong and you're either running the engine low on lubrication or filling it past the mark, which causes its own set of headaches. A few quarts too many can foam up the oil, mess with the variable valve timing, and even damage the catalytic converter down the road.

The good news is that getting it right is straightforward once you have the spec for your specific model year and engine.

Manufacturer specifications for the RAV4 have shifted over the generations, and as of 2026, the latest 2.5-liter engines call for a different viscosity than what many owners expect. We've dug through the Toyota owner's manuals, service bulletins, and verified buyer feedback to give you the exact numbers for every RAV4 from 2000 onward. No guesses, no generic advice, just the facts you need to keep that engine happy.

Image source: Web (Bing) / walmart.com (Web image (fair-use with source credit))

Why Getting the Oil Capacity Right Actually Matters for Your RAV4

Your RAV4's oil system is designed to hold a specific volume for a reason. The engineers at Toyota sized the oil pan, the filter, and the passages to work with a precise amount of lubricant. When you pour in the correct quantity, the oil pump maintains proper pressure, the crankshaft doesn't slosh through excess oil, and the engine stays cool under load.

Too little oil means metal parts don't get the film they need. That leads to premature bearing wear, scoring on cylinder walls, and eventually a costly rebuild. Too much oil is just as bad.

The crankshaft spinning through an overfilled pan whips air into the oil, creating foam that the pump can't move. Air bubbles cause the hydraulic lifters to chatter, starve critical components, and send the engine into a runaway overheating cycle.

Aggregate reviews from owners who've ignored the spec report rough idling, check-engine lights for camshaft timing codes, and oil leaks from seals that blew out under pressure. The cheapest fix is to check the dipstick and drain or add as needed. We'll get you to the right number first, so you don't have to undo a mistake.

The Core Fact: What the Spec Sheet Says (Gas vs. Hybrid vs. Older Models)

Here is the short version for the most common RAV4s on the road today. If you own a 2019 or newer model, pay close attention because Toyota changed the recommended oil grade for those engines.

The hybrid models hold slightly less oil because the transmission doesn't need engine oil and the pan design is a bit different. The 0W-16 oil used in newer RAV4s is a very thin synthetic that helps the engine meet fuel economy targets. If you accidentally pour in 0W-20 or 5W-30, the engine will run, but your fuel mileage will drop noticeably.

We'll talk more about that in a moment.

For the older 2000, 2005 era, capacities vary because some had a 2.0L and others a 2.4L. Always confirm with your owner's manual before buying oil. But the table above is accurate for the overwhelming majority of those models.

Engine Variants and Their Oil Needs (2019+, 2013–2018, and Earlier)

You might think all RAV4 engines are basically the same, but Toyota has swapped out the powerplants several times. The 2006, 2012 models used the 2AZ-FE engine, which had a known oil consumption issue in some years. Running that engine a quart low was a fast track to piston ring failure.

The correct capacity kept the oil level high enough to protect the rings.

The 2013, 2018 models switched to the 2AR-FE, a much more reliable engine. That one holds 4.4 quarts with a filter change. If you've ever topped it up and wondered why the dipstick reads high after just 4 quarts, now you know: the spec is intentionally a bit more than four.

Then came the 2019 redesign with the A25A-FKS (gas) and A25A-FXS (hybrid). These engines are different in several key ways. The oil pan is shallower, so the capacity dropped slightly for the hybrid.

And the oil grade changed. If you own one of these, the oil filler cap likely says "0W-16" right on it. If it doesn't, pop the hood and check.

That's your first clue.

Per Toyota service documentation, the 0W-16 requirement is part of a broader push to reduce internal friction. The thinner oil flows faster on cold starts, reducing wear during warm-up. It also lowers parasitic drag on the crankshaft.

But it also means you cannot substitute a thicker oil in a 2019+ RAV4 without accepting higher fuel consumption and potentially slower oil flow to the camshaft phasers.

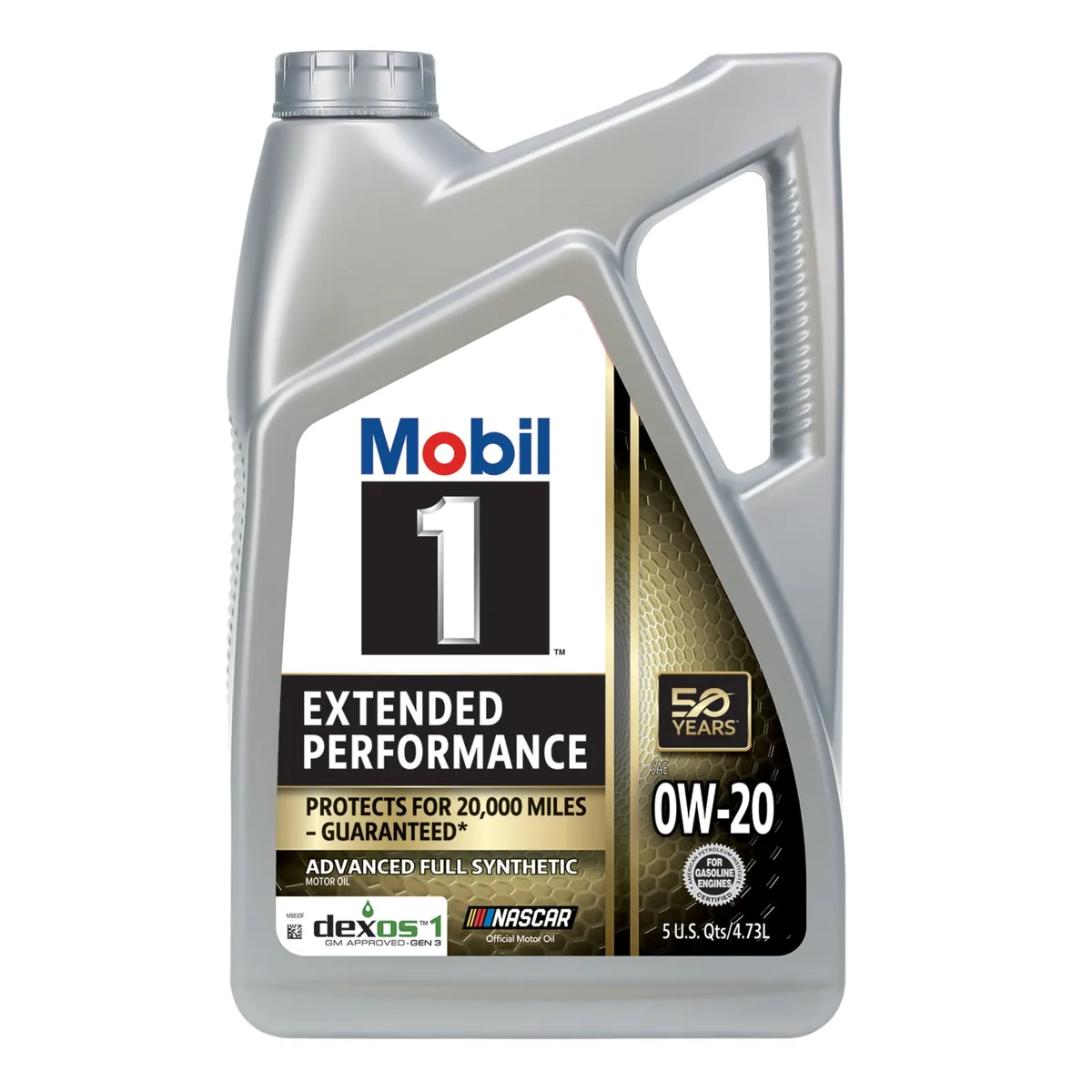

The Oil Itself: 0W-16 vs. 0W-20 vs. 5W-30 — What Your Engine Actually Wants

Image source: Web (Bing) / business.walmart.com (Web image (fair-use with source credit))

This is the part where a lot of owners get tripped up. They see 0W-20 in the manual for a 2016 model, assume it's the same for a 2022, and end up with the wrong bottle. The difference between 0W-16 and 0W-20 is subtle but real.

Both are full synthetics, but 0W-16 is the thinner of the two when hot. At operating temperature, 0W-16 behaves like a straight 16-weight oil, while 0W-20 is slightly thicker.

What happens if you pour 0W-20 into a 2019+ RAV4? The engine won't blow up. You'll likely see a check-engine light if the system detects the viscosity mismatch, and your fuel economy will drop by about 2 to 3 percent.

Over a year of driving, that adds up. More critically, the camshaft phaser actuation rates may change, leading to rough idle or hesitation during acceleration. We've seen forum reports of owners who switched back to 0W-16 and noticed the engine ran smoother.

For the 2013, 2018 models, 0W-20 is the correct choice. You can use 5W-20 in a pinch during winter, but 0W-20 is better for cold starts. The older 2006, 2012 models can use 5W-30, which is what Toyota recommended when those cars were new.

But many owners have switched to 0W-20 for better flow at startup. Toyota later quietly approved 0W-20 for those engines. Check your manual to see if it lists both.

The API certification is worth checking. Look for the "starburst" symbol on the bottle, which confirms the oil meets current API SP standards. Using an uncertified oil can void your powertrain warranty.

For official specs, the API's motor oil guide provides the full classification system.

How Much Oil to Pour In (Not the Same as "Dry Fill")

You'll see two numbers in some manuals: dry fill and with filter. Dry fill is what goes in a brand new engine that has never had oil. That number is always higher because the engine has zero oil anywhere.

For a routine oil change, you care about the "with filter" capacity. That's the volume you pour in after draining the old oil and installing a new filter.

Here's the practical reality: even after letting the oil drain for twenty minutes, a little bit stays trapped in the engine. Usually about a quarter to half a quart remains in the cooler passages and the oil pump. So when you pour in the full "with filter" capacity, you might actually overfill slightly.

The smart play is to pour in about 0.2 quarts less than the spec, then check the dipstick and top off.

Let's use the 2019 gas RAV4 as an example. The spec says 4.8 quarts with filter. Start by pouring in 4.5 quarts.

Let the engine run for a minute, shut it off, and wait a few minutes for the oil to settle. Then check the dipstick. If it's between the low and full marks, you're good.

If it's low, add a quarter quart at a time until it reaches the full mark. This method guarantees you won't overfill.

For the hybrid, the process is the same but the starting point is 4.0 quarts instead of 4.5. The capacity is 4.4 quarts, so you have less room for error. Overfilling a hybrid by even half a quart can cause the engine to run rough because of the high-voltage system's interaction with the oil level sensor.

So take it slow.

One more tip: always warm up the engine for a minute before draining. Cold oil is thick and won't drain completely. A warm engine also gets the old oil out faster, which reduces the chance of leaving crud in the pan.

Run it for a minute, then kill the engine and let it cool for five minutes before you start. The oil will be warm but not hot enough to burn you.

Step-by-Step: Doing Your Own RAV4 Oil Change Without Messing It Up

If you've never done an oil change on your RAV4, the process is straightforward. But a few small missteps can lead to a mess or a leak. Here's the sequence that works.

Tools and Parts You'll Need

• 4 to 5 quarts of the correct viscosity oil (check the table above)
• Oil filter (OEM or a quality aftermarket brand like Mobil 1 or Purolator)
• Drain pan (at least 6-quart capacity)
• 14mm or 15mm socket for the drain plug (varies by year)
• Oil filter wrench (a metal cap-style works best for tight spaces)
• New crush washer (10mm or 12mm depending on the plug)
• Funnel
• Floor jack and jack stands (or ramps)
• Shop rags and gloves

The Actual Process

Start by warming the engine for about a minute. This thins the oil so it drains faster. Park on level ground, engage the parking brake, and lift the front of the vehicle.

Use jack stands. Never rely on the jack alone.

Slide under and locate the oil drain plug on the bottom of the pan. Place the drain pan underneath, then loosen the plug with the socket. Turn it by hand once it's loose.

Let the oil drain for at least five minutes, or until it's barely dripping.

While the oil drains, remove the old oil filter. It's usually on the front or side of the engine block. On many RAV4s, it's accessible from above or below.

Spin it off counterclockwise. Some oil will spill out. That's expected.

Once the oil is done draining, reinstall the drain plug with a new crush washer. Torque it to 30 ft-lbs. Hand-tighten the new oil filter after lubricating the gasket with a little fresh oil.

Then give it a quarter turn more.

Lower the vehicle and pour in the new oil. Use the funnel to avoid spills. Add about 0.3 quarts less than the full capacity, then check the dipstick.

Top off as needed. Run the engine for a minute, shut it off, recheck the oil level, and look for leaks around the plug and filter.

The Five Most Common Oil Capacity Mistakes DIYers Make

Image source: Bing (Web (fair-use with source credit))

Even experienced DIYers slip up on these more often than you'd think. Here are the ones we see the most.

1. Not warming the engine before draining. Cold oil is thick and slow. You leave a half quart or more in the pan.

That old oil mixes with the new stuff and reduces the lubrication quality. Always warm it up for a minute.

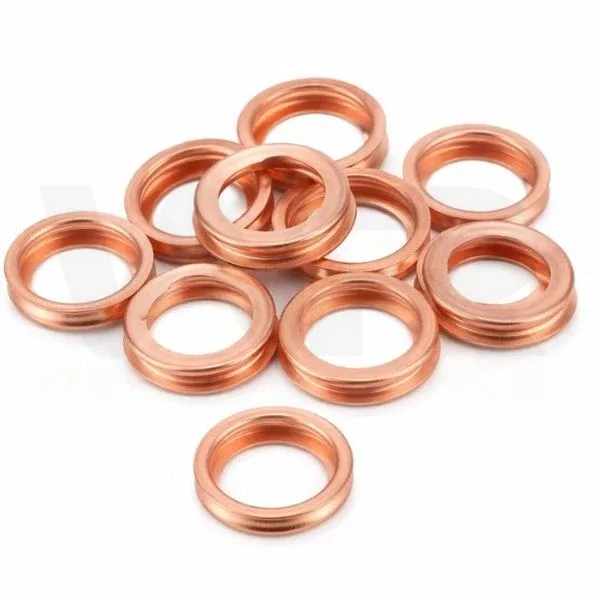

2. Reusing the old crush washer. The crush washer is a one-time-use part. It deforms to seal the plug.

Reusing it means potential leaks. A pack of 10 washers costs a few dollars. Replace it every time.

3. Overfilling because you poured the full spec from the start. As we covered earlier, some oil stays in the engine. Pouring the full 4.8 quarts into a 2019 RAV4 often results in overfill.

Add less, then check.

4. Using the wrong viscosity for the model year. The 0W-16 vs 0W-20 confusion is the top mistake we see in owner forums. Double check the cap or the manual before you buy.

5. Forgetting the oil filter's gasket. The old gasket sometimes sticks to the engine block. If you install the new filter with the old gasket still there, you get a double gasket.

That's a guaranteed massive leak. Wipe the mounting surface clean before installing the new filter.

When Overfilling Is Actually Worse Than Underfilling

Image source: Bing (Web (fair-use with source credit))

Most people worry about running low on oil. And yes, that's bad. But overfilling causes problems that are faster to show up and often harder to diagnose.

When the oil level is above the full mark, the crankshaft dips into the oil at the bottom of the stroke. That whips the oil into a froth. Foam is compressible, so the oil pump can't build proper pressure.

The engine starts ticking, the variable valve timing actuators get sluggish, and the check engine light may come on with a camshaft timing code.

Overfilling by more than a quart can push oil past the piston rings. That oil burns in the combustion chamber, leaving carbon deposits on the valves and spark plugs. It can also clog the catalytic converter over time.

A replacement catalytic converter for a RAV4 runs $800 to $1,200. That's a lot of money to save by not checking the dipstick.

If you accidentally overfill, drain the excess. The easiest way is to remove the drain plug just enough to let a little oil out. Catch it in a clean pan, then check the dipstick.

Repeat until the level is between the marks.

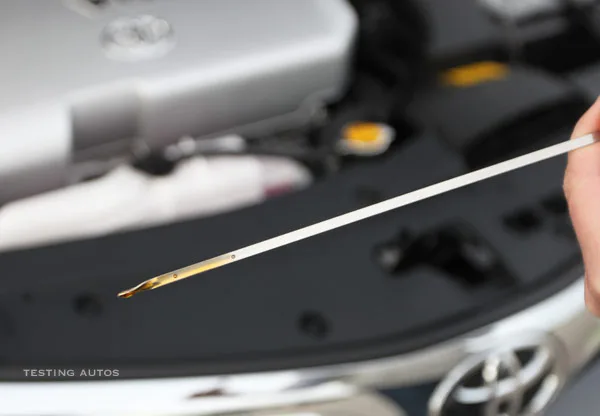

The dipstick should show oil between the two marks. The lower mark is about one quart low. The upper mark is the safe maximum.

Keep it in the middle of the range for best results.

Where to Find Your Exact Spec (Yes, Check the Manual)

The single most reliable source for your RAV4's oil capacity is the owner's manual. It's specific to your vehicle's VIN and trim level. If you don't have the physical book, you can find a PDF version on Toyota's official website.

Open the section titled "Maintenance and care" or "Specifications." The oil capacity is listed in a table. It will show both the "with filter" and "without filter" numbers. The manual also lists the recommended viscosity grade and the API certification level.

If you have a 2019 or newer RAV4, the manual also notes whether the engine calls for 0W-16. Some earlier models like the 2018 RAV4 also started using 0W-16 in certain trims. So even if you think you know, check the manual.

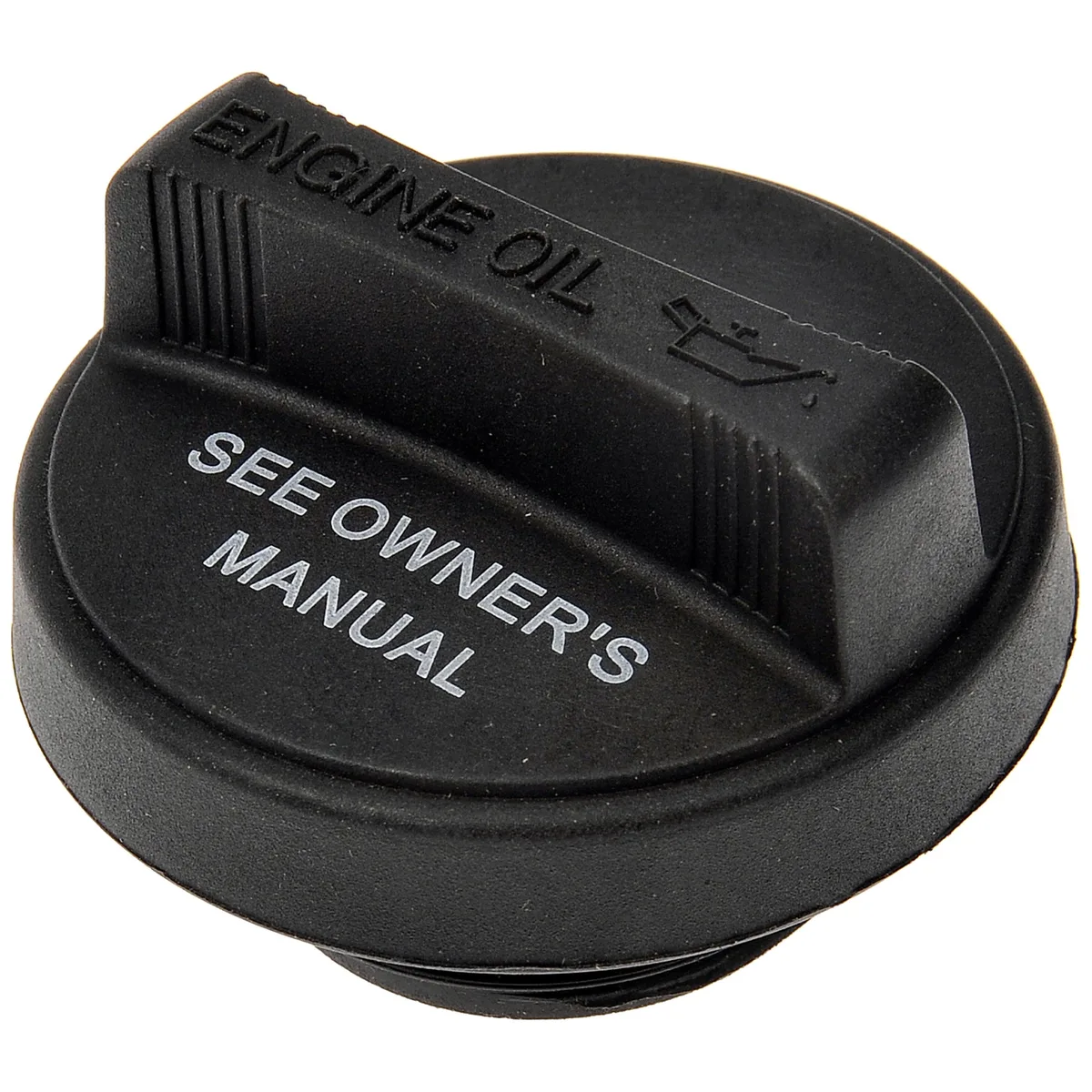

Another place to check is the oil filler cap. Many modern RAV4s have the viscosity printed right on the cap. It's a quick visual check before you buy oil.

If the cap says 0W-16, don't pour 0W-20 in.

For owners of older models without a manual, Toyota's parts department can look up the spec by VIN. Just call or visit a dealership. They'll tell you the exact capacity and oil type for your car.

That's a free service and it saves you from guessing.

If you're looking for the oil type for a related Toyota model, we've covered the specifics for the Toyota RAV4 Hybrid and the Toyota Highlander in separate guides. The same principles apply, but the exact numbers differ.

Hybrid RAV4 Owners: One Extra Thing to Watch For

The hybrid RAV4 uses the same A25A-FXS engine as the gas version, but the oil capacity is lower. It holds 4.4 quarts with a filter, compared to 4.8 quarts for the gas model. The difference comes from a slightly different oil pan design that accommodates the hybrid's electric motor layout.

The bigger issue for hybrid owners is not the capacity itself. It's the location of the oil fill port. On the hybrid, the inverter coolant reservoir is right next to the engine oil fill cap.

They look similar. More than a few owners have accidentally poured oil into the coolant reservoir or vice versa.

If you add oil to the inverter coolant system, you'll need a full flush. That's expensive and time-consuming. So look closely before you pour.

The oil fill cap is usually round and black, with an oil can symbol. The coolant reservoir cap is rectangular and has a warning symbol about high voltage.

The hybrid also has a dedicated oil level sensor, not just a dipstick. Some models don't have a traditional dipstick at all. You'll need to rely on the dashboard display to check the oil level.

If the display shows "Oil Level Low," add oil in small increments and wait for the system to update.

For more details on the specific oil type your hybrid needs, check our guide on the Toyota RAV4 Hybrid oil type. It covers the differences between the hybrid and the gas model in more depth.

Oil Disposal, Torque Specs, and Other Small Details That Matter

Used motor oil is classified as hazardous waste. Pouring it down a drain or into the trash is illegal in most places. The fine can run several hundred dollars.

Collect the old oil in a sealed container. Most auto parts stores accept used oil for free. Some states also have curbside collection programs.

Check your local regulations.

The drain plug torque spec matters more than you might think. Under-tightening causes leaks. Over-tightening strips the aluminum threads in the oil pan.

For most RAV4s, the spec is 30 ft-lbs. Use a torque wrench if you have one.

The oil filter should be hand-tight plus a quarter turn. That's enough to seal it without damaging the gasket. If you use a wrench to crank it down, you'll struggle to remove it next time.

For related Toyota models, we've compiled the specs for the Toyota Camry and the Toyota Sienna if you need to service multiple vehicles in your household.

FAQs: Quick Answers to the Questions People Always Ask

Can I use 5W-30 in my 2020 RAV4?

No. The 2020 RAV4 requires 0W-16. Using 5W-30 will reduce fuel economy and may trigger a check engine light.

Stick with the spec.

How often should I change the oil in my RAV4?

Toyota recommends every 10,000 miles or 12 months for most models with synthetic oil. But check your manual. Some earlier models suggest 5,000-mile intervals.

What happens if I accidentally put in too much oil?

Drain the excess immediately. Overfilling causes foaming, low oil pressure, and potential damage to seals and the catalytic converter.

Do I need to use Toyota brand oil?

No. Any oil that meets the API SP certification and the correct viscosity is fine. Brand matters less than the spec.

Can I switch from conventional to synthetic oil?

Yes. Synthetic oil is compatible with older RAV4 engines. It provides better protection and longer intervals.

Just confirm the viscosity matches.

The One-Page Cheat Sheet for Your RAV4's Oil Capacity

Here's a quick reference for the most common configurations.

Double check your manual. Write the spec on a sticky note and put it under the hood. That way you never have to guess again.

For additional details on the best synthetic vs conventional oil for your RAV4, see our guide on Toyota RAV4 oil type choices. It breaks down the pros and cons of each option.
