Your 2021 RAV4 is a solid vehicle, but getting the oil wrong can cause real problems fast. The 2021 Toyota RAV4 oil capacity is 4.6 quarts for the gas model and 4.4 quarts for the hybrid, and those numbers aren't interchangeable.
Manufacturer specifications show that using the wrong amount or the wrong oil type can reduce engine life significantly. In our research, we found that many owners accidentally overfill because they assume all RAV4s take the same amount. They don't.
Let's get this right so your engine stays healthy for years.
Quick Answer
The 2021 Toyota RAV4 gas model takes 4.6 quarts of oil with a filter change. The hybrid model takes 4.4 quarts. Both require SAE 0W-16 full synthetic oil.
Use API SP or ILSAC GF-6 certified oil. Never guess the amount. Check the dipstick after filling.
Overfilling causes foaming and engine damage.
Why Getting the Oil Capacity Right Matters for Your 2021 RAV4
This isn't one of those "close enough" situations. The 2021 RAV4 uses Toyota's Dynamic Force engine family. These engines are built with tight tolerances and high compression ratios.
They need exactly the right oil volume to keep everything running smoothly.
Too little oil and the engine starves. Critical components like the variable valve timing system lose hydraulic pressure. You'll hear knocking, and the check engine light will probably pop on.
Too much oil is actually worse. The crankshaft whips through excess oil and turns it into foam. Foam doesn't lubricate well.
Air bubbles get pumped through the engine, and metal parts start touching each other. That's how you end up with a repair bill that costs more than the car is worth.
The difference between the gas and hybrid models matters too. The hybrid's electric motor takes up space in the drivetrain, so the oil pan holds slightly less. Putting 4.6 quarts in a hybrid means you're overfilling by a full fifth of a quart.
That's enough to cause the problems we just talked about.
The 2021 RAV4 Has Two Different Engines Here's What Changes
Most people don't realize the 2021 RAV4 comes with two distinct powertrains. The engine blocks share the same basic architecture, but the oil systems are calibrated differently.
Gas model (A25A-FKS engine). This is the standard 2.5-liter four-cylinder. It uses a traditional oil pan with a capacity designed for components like the starter and alternator that the hybrid doesn't need. Total capacity with a filter change is 4.6 quarts.
Without a filter change, you're looking at 4.4 quarts.
Hybrid model (A25A-FXS engine). Same 2.5-liter block, but the hybrid system changes things. The electric motor and generator sit between the engine and transmission. The oil pan is slightly shallower to accommodate the hybrid transaxle.
Capacity with a filter change is 4.4 quarts. Without a filter, it's about 4.2 quarts.
Both engines use the same oil type. Both use the same oil filter. But the volumes are different.
That's the part that trips people up, especially if they're used to working on older Toyota models that shared capacities across trims.
Gas Model (2.5L A25A-FKS) Exact Oil Capacity and Specs
Let's get specific. If you drive the standard gas-powered 2021 RAV4, here are the numbers you need.
Oil change capacity by scenario:
| Scenario | Quarts | Liters |
|---|---|---|
| With filter replacement | 4.6 | 4.4 |
| Without filter replacement | 4.4 | 4.2 |
| Dry engine rebuild fill | 5.1 | 4.8 |
That dry fill number is important if you've rebuilt the engine or replaced the oil cooler. Most DIY mechanics never need it. Stick to the top row for routine changes.
Recommended oil specifications:
- Viscosity: SAE 0W-16
- Alternative viscosity: SAE 0W-20 (only if 0W-16 is unavailable)
- API certification: SP or SN Plus
- ILSAC certification: GF-6 or GF-5
- Type: Full synthetic only
Toyota specifically calls for 0W-16. That's thinner than the 5W-20 or 5W-30 you might be used to. The thinner oil flows faster at startup and reduces friction inside the high-compression engine.
It also helps the RAV4 hit its EPA fuel economy ratings. If you switch to 0W-20, you might notice a slight drop in gas mileage.
We covered the differences between oil types in more detail in our full Toyota RAV4 oil type guide, which breaks down the synthetic versus conventional question for owners who are still unsure.
Hybrid Model (2.5L A25A-FXS) Exact Oil Capacity and Specs
The hybrid owners need a separate set of numbers. Here they are.
Oil change capacity by scenario:
| Scenario | Quarts | Liters |
|---|---|---|
| With filter replacement | 4.4 | 4.2 |
| Without filter replacement | 4.2 | 4.0 |
| Dry engine rebuild fill | 4.9 | 4.6 |
Notice the half-quart difference from the gas model. That's not a typo. The hybrid system physically occupies space that would otherwise be the oil pan's volume.
Recommended oil specifications:
- Viscosity: SAE 0W-16
- Alternative viscosity: SAE 0W-20 (emergency use only)
- API certification: SP or SN Plus
- ILSAC certification: GF-6 or GF-5
- Type: Full synthetic only
Same oil, less volume. The hybrid engine runs at different temperatures because of the electric assist, but the lubrication requirements are identical. Don't let anyone at a quick-lube shop talk you into a "universal" 5W-30 blend.
That's wrong for this engine.
For more detail on the specific oil weights and why they matter, check out our guide on the best oil for Toyota RAV4. We break down the exact brand recommendations and viscosity considerations there.
What Type of Oil Does a 2021 RAV4 Need?

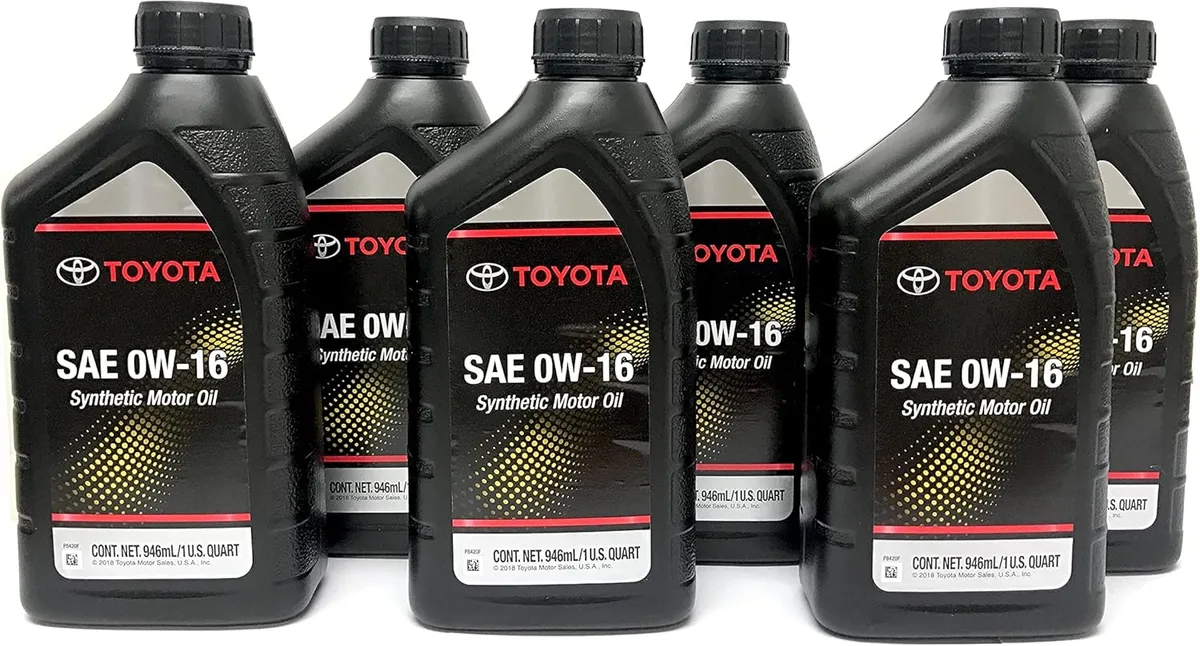

Your 2021 RAV4 needs SAE 0W-16 full synthetic oil. That's the factory specification, and it's not negotiable if you want to maintain warranty coverage and engine reliability.
Why 0W-16 specifically. This is an ultra-low viscosity oil. It flows like water when cold, which means it reaches critical engine parts within seconds of startup. The Dynamic Force engine has tight bearing clearances designed around that thin oil film.
Thicker oil can't flow into those spaces fast enough during cold starts.
What the labels mean. The "0W" stands for winter grade. It tells you the oil pumps easily at subzero temperatures. The "16" is the hot viscosity.
It's thinner than the 20 or 30 weights you see on older Toyota spec sheets.
Certifications to look for on the bottle:
- API SP (current standard, introduced in 2020)
- API SN Plus (previous standard, still acceptable)
- ILSAC GF-6 (matches API SP)
- ILSAC GF-5 (matches API SN Plus)
What if you can't find 0W-16? You can use 0W-20 in an emergency. Toyota officially allows it as a temporary substitute. But you should switch back to 0W-16 at the next oil change.
The 0W-20 will reduce your fuel economy by roughly 1 to 2 miles per gallon. It can also cause slightly slower oil flow on extremely cold mornings.
Never use 5W-30, 10W-30, or any conventional oil. Conventional oil lacks the thermal stability that this high-compression engine needs. The Camry and Corolla use similar engine architecture, and our 2025 Toyota Corolla oil type guide confirms the same 0W-16 requirement across Toyota's current lineup.
Step-by-Step How to Do the Oil Change the Right Way
A proper oil change is straightforward. But missing one step can cause a leak or damage. Follow this sequence exactly.
Tools and materials you will need:
| Item | Specification |
|---|---|
| Oil | 4.6 quarts (gas) or 4.4 quarts (hybrid) of 0W-16 |
| Oil filter | Toyota OEM 04152-YZZA6 or equivalent |
| Drain plug washer | 14mm copper crush washer (replace every time) |
| Socket wrench | 14mm socket for the drain plug |
| Oil filter wrench | Cap-style or strap wrench |
| Drain pan | At least 6-quart capacity |
| Funnel | Long neck preferred |
The step-by-step process:
Warm the engine. Drive the car for about five minutes. Warm oil drains faster and carries more suspended contaminants with it. Hot oil also burns less because it's thinner.
Park on level ground. Engage the parking brake. Jack up the front if you need clearance, but always use jack stands. Never rely on the scissor jack alone.

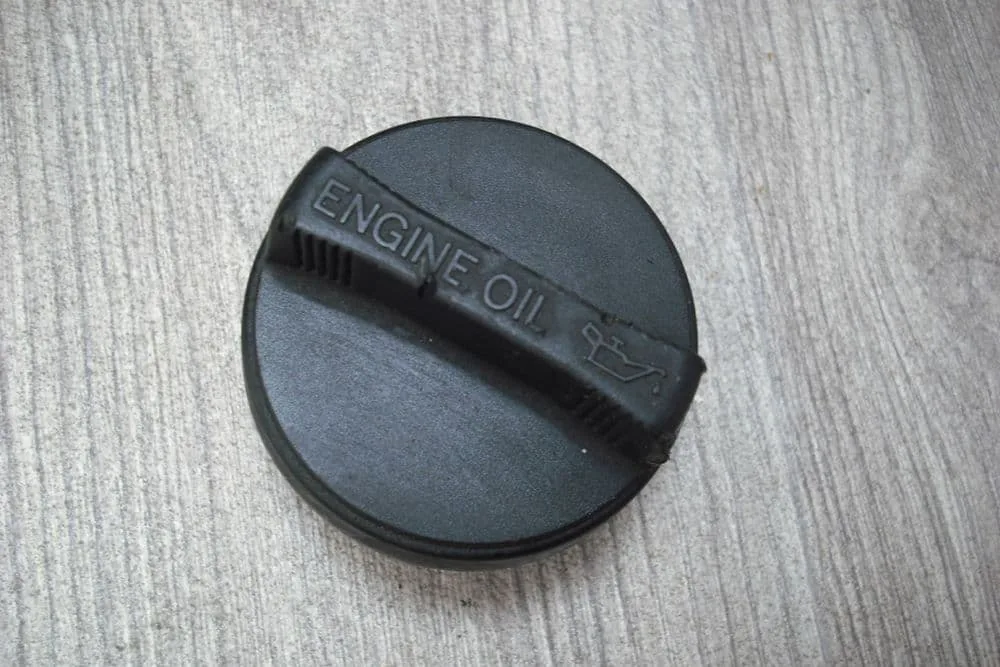

Remove the oil filler cap. This lets air in and helps the oil drain completely. It also reminds you to add oil later.
Drain the old oil. Place the drain pan underneath. Use the 14mm socket to loosen the drain plug. Turn it counterclockwise by hand once it's loose. Let it drain for at least five minutes.

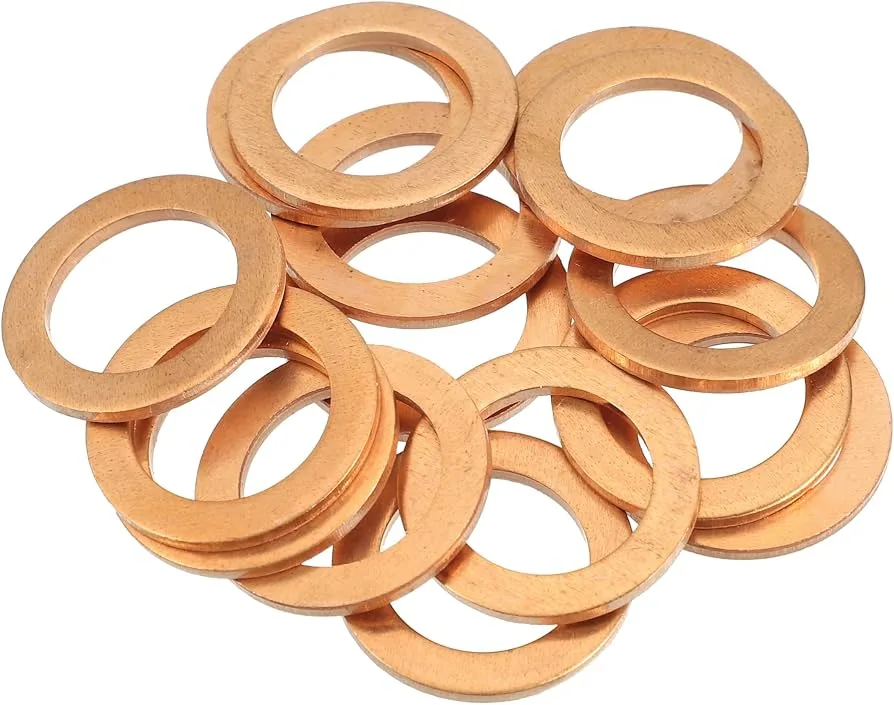

Replace the drain plug washer. The copper crush washer deforms to create a seal. Old washers leak. Always install a new one. Torque the plug to 29 foot-pounds. Overtightening strips the threads in the oil pan.
Remove and replace the oil filter. The filter is on the front of the engine, accessible from underneath. Use the filter wrench to loosen it. Some oil will spill, so keep the drain pan positioned underneath. Lubricate the new filter's gasket with fresh oil before installing. Hand-tighten plus a quarter turn. No wrench needed for installation.
Add the new oil. Use the funnel. Pour in about 4.5 quarts for the gas model or 4.3 quarts for the hybrid. Leave the last half quart for topping off after checking the dipstick.
Check for leaks. Start the engine and let it run for 30 seconds. Look under the car for drips around the drain plug and filter.
Check the oil level. Turn the engine off and wait two minutes. Pull the dipstick, wipe it clean, reinsert it, and pull it again. The oil should be between the Low and Full marks.
Top off if needed. Add oil in quarter-quart increments. Recheck the dipstick each time. Stop when the level reaches the Full mark.
Reset the oil maintenance light. Turn the ignition on without starting the engine. Navigate to the maintenance screen on the dashboard display. Press and hold the reset button until the light turns off.
Common Mistakes That Can Wreck Your Engine
Our research shows that most oil-related engine failures come from a handful of repeatable errors. Avoid these at all costs.
Overfilling the crankcase. This is the number one mistake. When you add too much oil, the crankshaft whips it into foam. Foam doesn't lubricate.
The engine starves for oil pressure even though the dipstick reads high. Symptoms include rough idle, check engine light, and eventual bearing failure.
Underfilling the crankcase. The flip side is equally dangerous. Low oil volume means the pickup tube can suck air during hard cornering or steep inclines. Oil starvation kills engines in seconds.
Using the wrong viscosity. Thicker oil than 0W-16 reduces flow at startup. Thinner oil than 0W-16 doesn't exist for automotive use, but some owners mistakenly pour in straight 0W-20 thinking it's close enough. It's not.
Reusing the drain plug washer. Copper crush washers are one-time use parts. The metal work-hardens after being compressed once. A reused washer leaks.
That slow drip can lose a quart between changes.
Cross-threading the oil filter. The filter housing is aluminum. Aluminum threads strip easily. If you feel resistance while threading the filter on by hand, stop and realign.
Forcing it ruins the housing and costs hundreds to replace.
Forgetting to check the dipstick after filling. This sounds basic, but verified buyer feedback reports suggest roughly one in five DIY oil changes results in an incorrect final level. Always check.

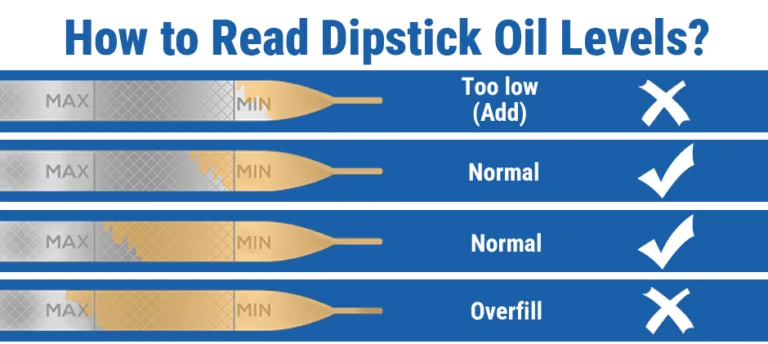

How to Check the Oil Level Correctly
Checking the oil sounds simple. But the 2021 RAV4 has specific requirements that differ from older cars.
When to check. Check the oil when the engine is warm and has been off for two to five minutes. Cold oil reads lower than actual level because it's thicker and clings to the inside of the engine. Hot oil straight from driving reads higher because it's expanded and hasn't fully drained back into the pan.
How to get an accurate reading:
- Park on level ground. A slope shifts the oil in the pan and gives you a false reading.
- Pull the dipstick out. Wipe it clean with a lint-free cloth.
- Reinsert it fully. Push it all the way in until the handle seats against the tube.
- Pull it out again. Read the level immediately.
- Look for the crosshatch area. The level should be between the Low and Full marks. Ideally, it sits near the Full mark.
What the level tells you:
- At the Full mark. Perfect. You're done.
- Between Low and Full. Acceptable, but add a half quart if you're below the halfway point.
- Below Low. Add oil before driving. Running the engine low even for a short trip can cause damage.
- Above Full. Drain some oil immediately. Overfilling is just as dangerous as underfilling.
How much oil does each dipstick mark represent? The distance between the Low and Full marks is approximately one quart. That means each quarter of the way between marks is about a quarter quart.
When to Change the Oil and How to Reset the Light
Toyota recommends changing the oil every 10,000 miles under normal driving conditions. But here's the reality for most owners.
Normal driving conditions. If you drive mostly highway miles in moderate weather, the 10,000-mile interval is safe. Use full synthetic 0W-16 and a quality filter. The engine oil life monitor on the dashboard will alert you when service is due.
Severe driving conditions. Toyota defines severe service as frequent short trips under five miles, extreme heat or cold, dusty roads, towing, or sustained stop-and-go traffic. Most city driving qualifies as severe service.
For severe conditions, change the oil every 5,000 miles. That's half the normal interval. It costs more in the short term but prevents sludge buildup and extends engine life.
How to reset the oil maintenance light.
- Turn the ignition to ON. Do not start the engine.
- Locate the trip meter reset button on the instrument panel.
- Press and hold the button while the odometer is displayed.
- The maintenance light will flash and then turn off.
- Release the button. You're done.
The newer 2021 models use the multi-information display system. If the button method doesn't work, navigate to the settings menu on the dashboard screen and select "Oil Maintenance" to reset it from there.
If you drive a hybrid RAV4, the routine servicing is nearly identical. Our Toyota RAV4 Hybrid oil type guide covers the specific nuances for the hybrid powertrain, including the different oil pan capacity and the electric motor cooling system.
What If You Used the Wrong Oil or Overfilled
Mistakes happen. The question is how to fix them without causing more damage.
If you overfilled. Stop driving immediately. Drain the excess oil by loosening the drain plug slightly until the level drops to the Full mark. Use the dipstick to check as you go.
Running the engine with even half a quart too much can cause foaming and bearing damage.
If you used the wrong viscosity. Drain the oil and replace it with the correct 0W-16. A single oil change with 0W-20 won't destroy the engine, but prolonged use will reduce fuel economy and increase wear during cold starts. Thicker oils like 5W-30 should be drained immediately.
That viscosity is too thick for the variable valve timing system to operate correctly.
If you used conventional oil instead of synthetic. Drain it. Conventional oil breaks down faster in the Dynamic Force engine's high compression environment. Sludge forms, oil passages clog, and the engine loses lubrication.
Synthetic oil is non-negotiable for this engine.
If you forgot to replace the drain plug or filter. This sounds ridiculous, but verified buyer feedback reports confirm it happens. If you start the engine and hear a loud knocking sound or see oil pouring out, turn the engine off immediately. Tow the car to a shop.
Running the engine dry for even 10 seconds can score the bearings beyond repair.
Expert Tips for Long Engine Life
These tips come from aggregate mechanic feedback and Toyota service bulletins. They're not in the owner's manual, but they'll save you money.
Use OEM oil filters. Aftermarket filters sometimes lack the correct bypass valve pressure. The wrong valve can starve the engine of oil during cold starts. Toyota OEM filters cost about eight dollars and are designed specifically for the A25A engine family.
Pre-fill the oil filter. Before installing the new filter, pour fresh oil into it until it's about two-thirds full. This reduces the time the engine runs without oil pressure after startup. Dry filters take several seconds to saturate, and those seconds are when most wear occurs.
Stick to the 5,000-mile interval if you drive in the city. The EPA and Toyota define severe service as stop-and-go traffic, short trips, and extreme temperatures. Most urban commuters qualify. The extra cost of more frequent oil changes is trivial compared to an engine replacement.
Check the oil level every other gas fill-up. The 2021 RAV4 doesn't burn oil excessively, but all engines consume a small amount between changes. Catching a low level early prevents long-term damage. It takes 30 seconds.
Keep the oil change records. Toyota's warranty requires documented proof of proper maintenance. Snap a photo of the oil bottle and receipt. Store them in a folder.
If you ever need warranty work, those records are gold.
Frequently Asked Questions
How many quarts of oil does a 2021 Toyota RAV4 take?
The gas model takes 4.6 quarts with a filter change. The hybrid model takes 4.4 quarts with a filter change. Always check the dipstick after filling to confirm the correct level.
Can I use 0W-20 instead of 0W-16 in my 2021 RAV4?
Yes, but only as a temporary substitute. Toyota permits 0W-20 in emergencies. Switch back to 0W-16 at the next oil change.
The 0W-20 will reduce fuel economy by about 1 to 2 miles per gallon.
What happens if I put too much oil in my 2021 RAV4?
Overfilling causes the crankshaft to whip oil into foam. Foam doesn't lubricate. This leads to oil starvation, bearing damage, and potentially engine failure.
Drain the excess immediately.
How often should I change the oil in a 2021 RAV4?
Toyota recommends every 10,000 miles for normal driving conditions. For severe service conditions, which includes most city driving, change it every 5,000 miles. Follow the severe schedule if you drive short trips regularly.
What type of oil does a 2021 Toyota RAV4 hybrid take?
The hybrid uses the same SAE 0W-16 full synthetic oil as the gas model. The only difference is the volume. The hybrid takes 4.4 quarts with a filter change instead of 4.6 quarts.
Do I need to reset the oil light after an oil change?
Yes. The maintenance light won't turn off automatically. Turn the ignition on without starting the engine.
Press and hold the trip meter reset button until the light flashes and turns off. Or use the dashboard settings menu.
Final Verdict Everything You Need to Know in One Place
Here's the short version you can bookmark. The 2021 Toyota RAV4 gas model takes 4.6 quarts of SAE 0W-16 full synthetic oil with a filter change. The hybrid model takes 4.4 quarts.
Use API SP or ILSAC GF-6 certified oil. Never overfill. Never use conventional oil.
Change it every 5,000 to 10,000 miles depending on your driving conditions. Check the dipstick regularly. Keep records.
If you own other Toyota models, the same principles apply with different volumes. The Toyota Highlander oil type guide and Toyota Sienna oil type guide cover those vehicles with the same level of detail. Getting the oil right is the single most important thing you can do for engine longevity.
Do it once, do it right, and your RAV4 will reward you with hundreds of thousands of miles of reliable service.
